2304-LH - 2 1/2"DEEP BOX - 1 GANG W/POSITIONING TABS & CLAMPS 50/BOX
SKU: ED-NGB-2304-LH

This 2304 LH electrical box is great if you are looking to save time and money on your electrical box installations. It features embossed slots for mounting your screws and fixed tabs for 1/2-inch drywalls. It also features holding prongs so you can firmly place the box exactly where you want it as you begin your installation. Additionally, it features fixed tabs that are designed for exterior wall applications. These boxes make placement errors a thing of the past!
Related Products
SBEX | Device Box Extension 1" D
2304-LH-2 - 2 1/2" Deep Box - 2 Gang w/Positioning Tabs & Clamps 20/box
2304-LH-3 - 2 1/2" Deep Box - 3 Gang w/Positioning Tabs & Clamps 20/box
2304-LH-4 - 2 1/2" Deep Box - 4 Gang w/Positioning Tabs & Clamps 10/box
EMT Compression Connector | Steel | 1/2"
EMT Insulated Compression Connector | Steel | 1/2"
Decorator Wallplate | 1 Gang | Black | Nylon
Decorator Wall Plate | 1 Gang | White | Nylon
Mid-Size Wallplate | 1 Gang | Blank | White | Plastic
Mid-Size Wallplate | 1 Gang | White | Plastic

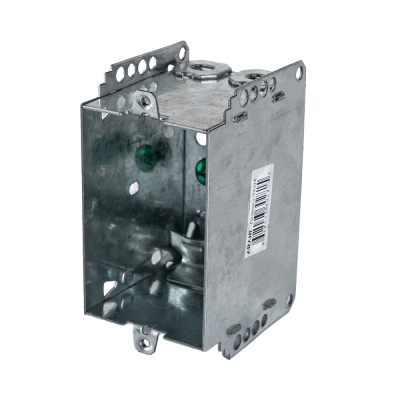

2104-LLE | 1 Gang Device Box 2 1/2" D
Performance Data
Voltage Classification: Regular (120V) Regular (120V)
Physical Data
Weight: 0.45 lb(s) 0.205 kg(s)
Number of gangs: 1 Gang(s) 1 Gang(s)
Metal Thickness: 0.047 in 1.2 mm
Weight: 7.2 oz 205 g
Volume: 14.5 cu. in. 238 ml
Number of knockouts/Inlets: 4 4
Width: 2 in 5.08 cm
Depth: 2 1/2 in 6.35 cm
Height: 3 in 7.62 cm
Body material: Galvanized Steel Galvanized Steel
Raised ground screw: No No
Clamp type: Non Metallic Sheated Clamp (NMD90) Non Metallic Sheated Clamp (NMD90)
Ordering Info
Warranty: 1 Year(s) 1 Year(s)
Size: 3” x 2” 3” x 2”
Certifications: cETL cETL
Ordering Code: ED-NGB-2304-LH ED-NGB-2304-LH
Gangable: No No
Series: Non-Gangable Device Boxes Non-Gangable Device Boxes
