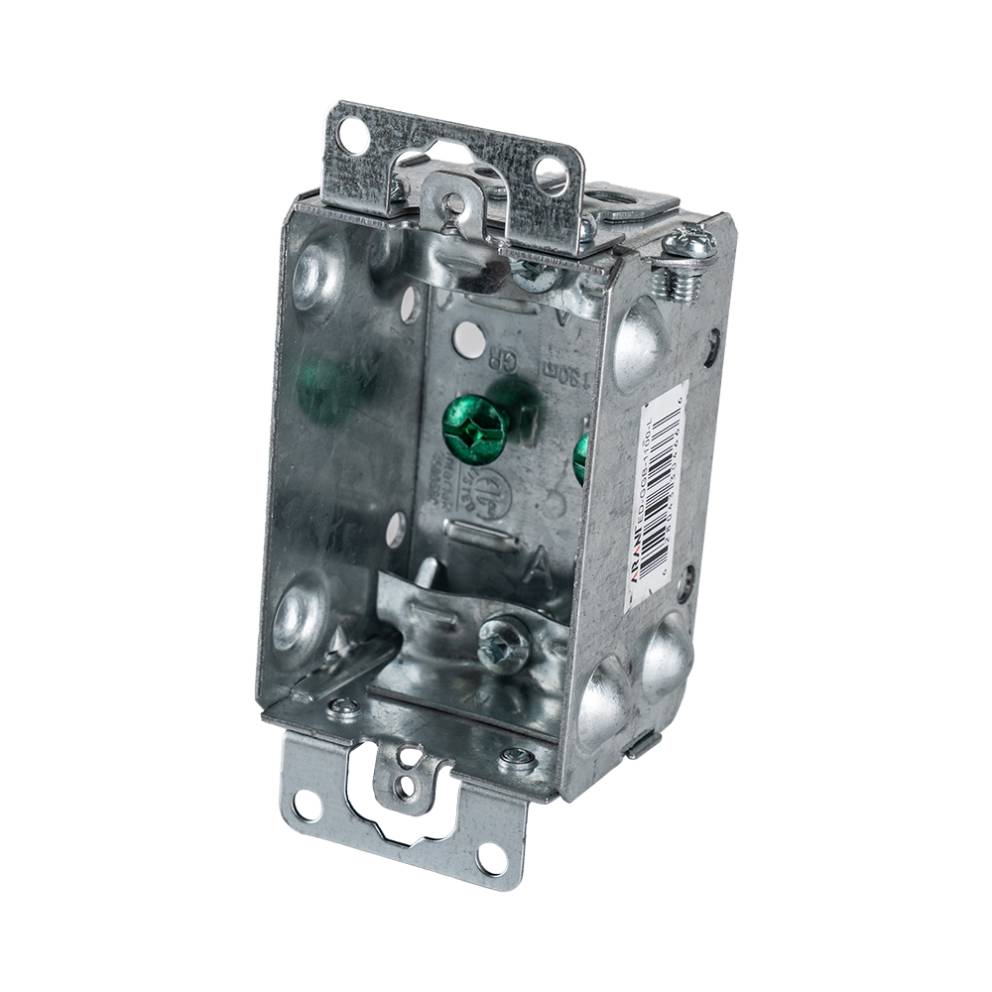

Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, three-quarter view with green grounding screws

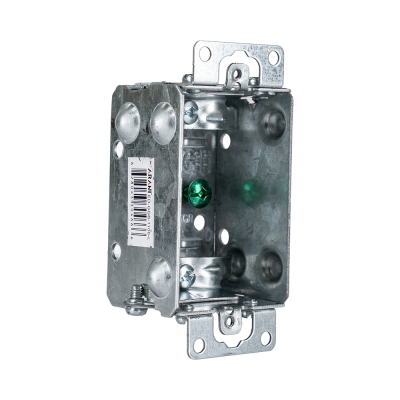

Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, rear three-quarter view with SKU label on dimpled side wall

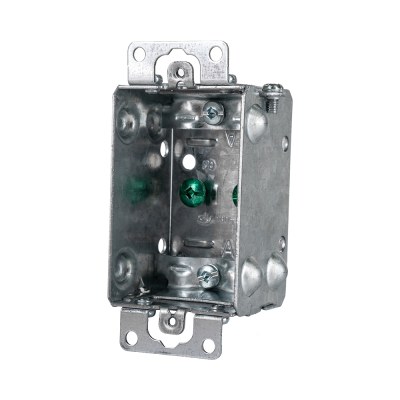

Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, three-quarter view with cable clamps top and bottom inside

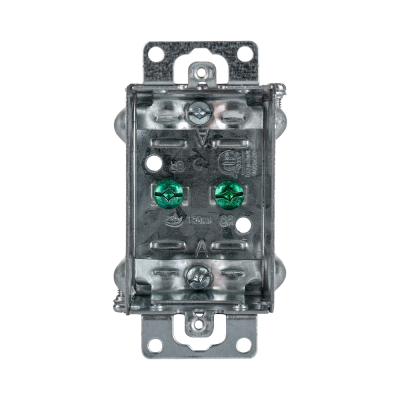

Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, front view with two green grounding screws between clamps

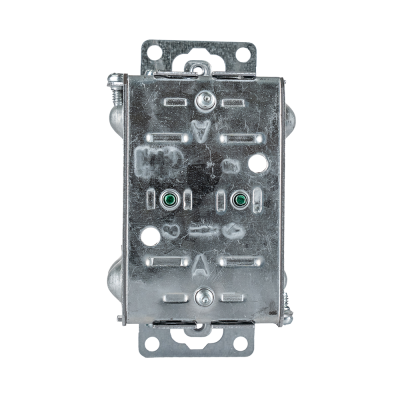

Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, rear view with clamp slots and green screw tips

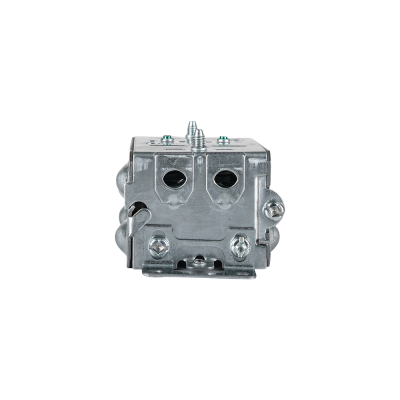

Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, side view with two open octagonal end knockouts
Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, three-quarter view with green grounding screws
Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, rear three-quarter view with SKU label on dimpled side wall
Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, three-quarter view with cable clamps top and bottom inside
Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, front view with two green grounding screws between clamps
Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, rear view with clamp slots and green screw tips
Arani 1100-L gangable device box, 1-1/2 in deep, NMD90, ears, side view with two open octagonal end knockouts

1100-L | GANGABLE DEVICE BOX 1 1/2" D

SKU: ED-GGB-1100-L

Electrical Testing Laboratories logo

Arani Branded, built for Canadian electricians and contractors. Discover the excellence of our latest gangable metal electrical boxes, crafted from durable 1.2mm galvanized metal. Upgrade your electrical systems with our superior-quality devices, designed to outperform previous models. Don't miss out on our unbeatable prices - seize the opportunity to revolutionize your installations today!

Related Products
Arani SBEX device box extension ring, 7/8 in deep, three-quarter view with mounting ears at top and bottom
ED-NGB-SBEX

SBEX | Device Box Extension 1" D

Arani 1004-L gangable device box, 3 in deep, NMD90, ears, three-quarter view with mounting ears and internal cable clamps
ED-GGB-1004-L

1004-L | Gangable Device Box 3"D

Arani 1004-LH gangable device box, 3 in deep, NMD90, no ears, three-quarter view with raised side knockout dimples
ED-GGB-1004-LH

1004-LH | Gangable Device Box 3"D

Arani 1102-L gangable device box, 2 in deep, NMD90, ears, three-quarter view with green grounding screw and internal clamp
ED-GGB-1102-L

1102-L | Gangable Device Box 2"D

Arani 1104-K gangable device box, 2-1/2 in deep, knockouts, recessed ears, three-quarter view with green grounding screws
ED-GGB-1104-K

1104-K | Gangable Device Box 2-1/2"D

1104-L - 2 1/2" Deep Box w/ Plaster Ears & Clamps Image
ED-GGB-1104-L

1104-L | Gangable Device Box 2-1/2"D

Arani 1104-LA gangable device box, 2-1/2 in deep, AC90, ears, three-quarter view with stud bracket folded out at top
ED-GGB-1104-LA

1104-LA | Gangable Device Box 2-1/2"D

Arani 1104-LH gangable device box, 2-1/2 in deep, 12.5 cu in, no ears, three-quarter view with nail-in positioning tabs
ED-GGB-1104-LH

1104-LH | Gangable Device Box 2-1/2"D

1104-LHA - 2 1/2" Box w/ Armoured Clamps Image
ED-GGB-1104-LHA

1104-LHA | Gangable Device Box 2-1/2"D

Specs sheet

Download the specifications sheet.

Ordering Info

Series: Gangable Device Boxes Gangable Device Boxes

Size: 3” x 2” 3” x 2”

Gangable: Yes Yes

Warranty: 1 Year(s) 1 Year(s)

Certifications: cETL cETL

Ordering Code: ED-GGB-1100-L ED-GGB-1100-L

Performance Data

Voltage Classification: Regular (120V) Regular (120V)

Physical Data

Body material: Galvanized Steel Galvanized Steel

Weight: 5.3 oz 149 g

Width: 2 in 5.08 cm

Height: 3 in 7.62 cm

Metal Thickness: 0.047 in 1.2 mm

Depth: 1 1/2 in 3.81 cm

Clamp type: Non Metallic Sheated Clamp (NMD90) Non Metallic Sheated Clamp (NMD90)

Raised ground screw: No No

Number of gangs: 1 Gang(s) 1 Gang(s)

Number of knockouts/Inlets: 4 4

Volume: 8 cu. in. 131 ml

Weight: 0.331 lb(s) 0.149 kg(s)
