53151-SUB-K - EXTENSION FOR 4’’ SQUARE BOX 1 1/2’’ DEEP 21 CU.IN
SKU: ED-EXS-53151-SUB-K

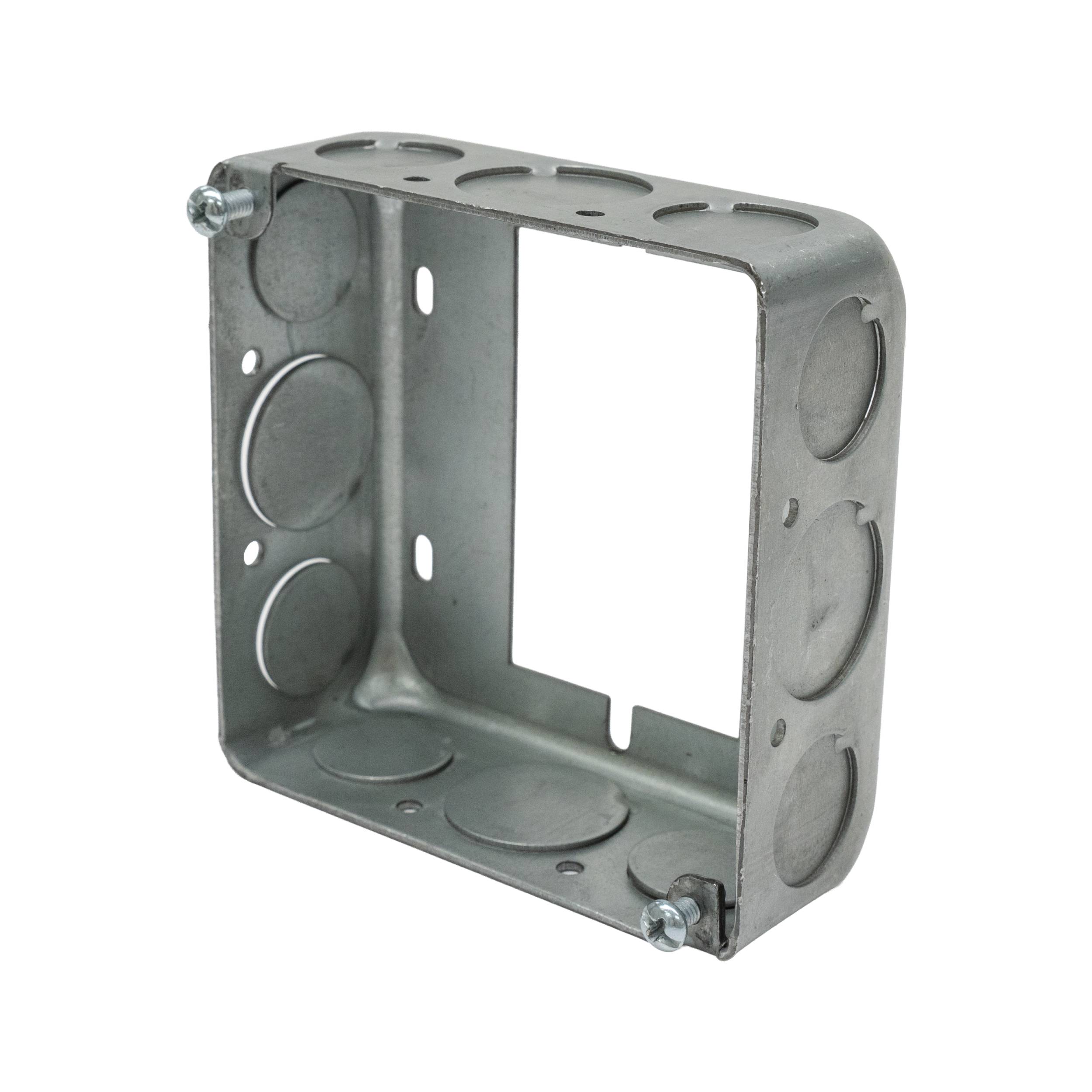

Arani Branded. Arani Exclusive. When a device box runs out of room, this adapter ring converts it to a full 4 in square without pulling the box or the existing wiring. At 1-1/2 in deep, it adds 21 cu in (344 ml) of fill, enough for up to 14 #14 AWG or 12 #12 AWG conductors. Eight 1/2 in and four 3/4 in knockouts open up options for new conduit runs, and combination Robertson/slotted screws work with the square bit already in your driver. The galvanized steel body (1.2 mm min.) is cULus listed for residential, commercial and industrial work. Add capacity and conduit access in minutes while keeping the original install in place.
Ordering Info
Size: 4" 4"
Gangable: No No
Warranty: 1 Year(s) 1 Year(s)
Certifications: cULus cULus
Ordering Code: ED-EXS-53151-SUB-K ED-EXS-53151-SUB-K
Performance Data
Voltage Classification: Regular (120V) Regular (120V)
Physical Data
Body material: Galvanized Steel Galvanized Steel
Weight: 8.96 oz 254 g
Width: 4 in 10.16 cm
Height: 4 in 10.16 cm
Metal Thickness: 0.047 in 1.2 mm
Depth: 1 1/2 in 3.81 cm
Clamp type: Conduit Knockout Conduit Knockout
Stud Mounting Type: In Junction Box In Junction Box
Number of knockouts/Inlets: 12 (8 x 1/2", 4 x 3/4") 12 (8 x 1/2", 4 x 3/4")
Volume: 21 cu. in. 344 ml
Weight: 0.56 lb(s) 0.254 kg(s)
