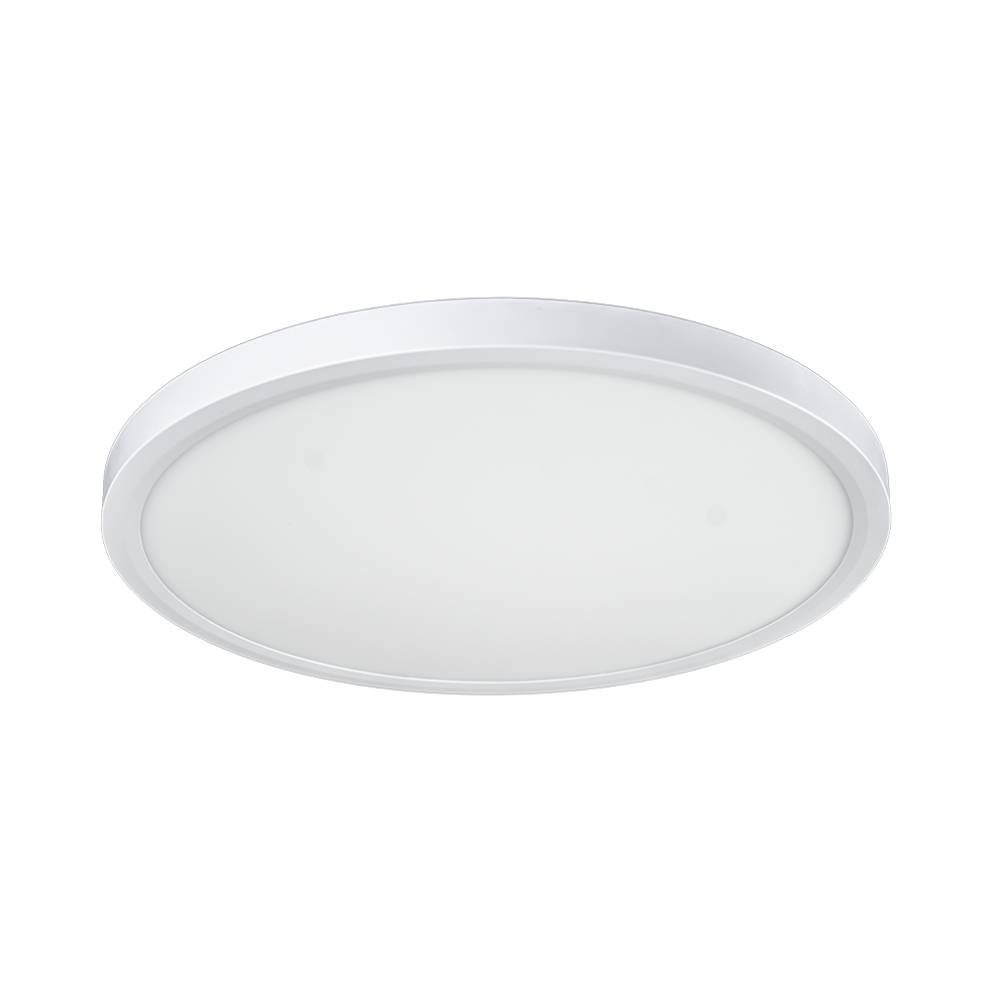

CIRCULAR 12" CEILING LIGHT | WHITE | 5CCT VARIABLE | 20-22-24W 2520 LUMENS | V5
SKU: CL12-20W-24W-VAR-WH-V5
The 12-inch slim LED downlight delivers up to 2520 lumens at 105 lm/W, sized for living rooms, larger bedrooms, and open kitchens. Five color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) and three power levels (20W, 22W, 24W) are selected on the fixture, so one stocked unit replaces multiple SKUs. The 11/16-inch profile, plastic body, and polycarbonate lens make this a clean fit for slab and joist ceilings without recessing. CRI of 90+ and a 110° beam keep light quality consistent at residential ceiling heights. Triac dimming, 1 kV surge protection on both L-N and L/N-PE, and damp-location rating cover most indoor applications including covered porches and bathrooms. cETLus listed under file 5000999, backed by a 5-year warranty and 35,000-hour rated life.
Ordering Info
Product Colour: White White
Application: Residential and Commercial Residential and Commercial
Product Lifetime: 35000 Hours 35000 Hours
Warranty: 5 Year(s) 5 Year(s)
Certifications: cETLus cETLus
Ordering Code: CL12-20W-24W-VAR-WH-V5 CL12-20W-24W-VAR-WH-V5
Model Number: CLEL12R24W-VAR-WH-V5 CLEL12R24W-VAR-WH-V5
Size: 12" 12"
Performance Data
Nominal Input Current: 0.19 A 0.19 A
Suitable Conditions: Damp Damp
Maximum Operating Temperature: 104 °F 40 ℃
Minimum Operating Temperature: -4 °F -20 ℃
CRI (Colour Rendering Index): 90+ 90+
Beam Spread: 110 ° 110 °
Dimming Type: Triac Triac
Efficacy: 105 lumens/Watt 105 lumens/Watt
Indoor/Outdoor: Indoor Indoor
Colour Temperature: 2700K | 3000K | 3500K | 4000K | 5000K 2700K | 3000K | 3500K | 4000K | 5000K
Rated Power(W): 20W | 22W | 24W 20W | 22W | 24W
Maximum Lumens: 2520 lm 2520 lm
Input Voltage: 120 Vac 120 Vac
Physical Data
Weight: 20.11 oz 570 g
Body material: Plastic Plastic
Height: 0.67 in 1.7 cm
Diameter: 12 in 30 cm
Mounting Type: Surface Mount Surface Mount
