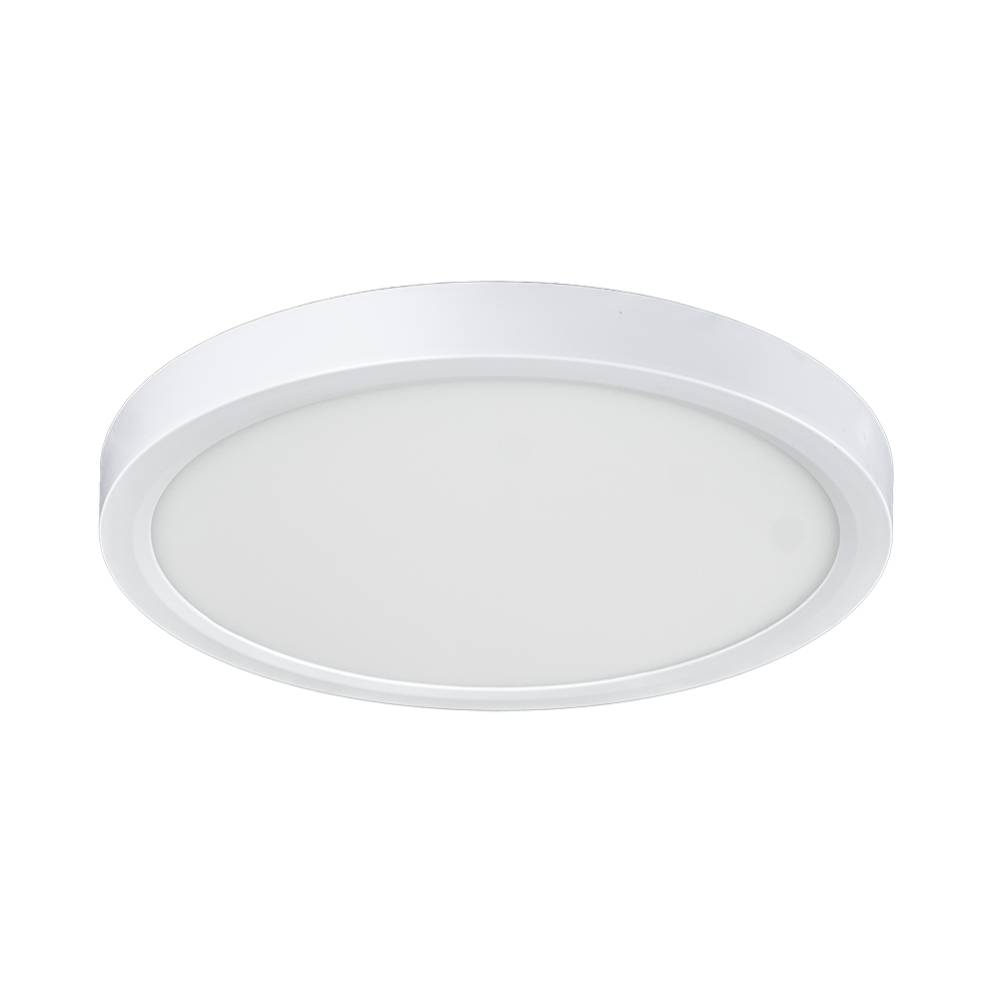

CIRCULAR 7" CEILING LIGHT | WHITE | 5CCT VARIABLE | 8-10-12W 1200 LUMENS | V5
SKU: CL07-8W-12W-VAR-WH-V5
The 7-inch slim LED downlight gives electricians a single SKU that covers most low-profile ceiling jobs. Five color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) and three power levels (8W, 10W, 12W) are selectable directly on the fixture, so one stocked unit replaces five. Output ranges from 800 to 1200 lumens at 100 lm/W with a 90+ CRI and a 110° beam, suitable for kitchens, hallways, and laundry rooms. The 11/16-inch profile, plastic body, and polycarbonate lens keep installation clean in tight ceiling cavities. Triac dimming, 1 kV surge protection on both L-N and L/N-PE, and damp-location rating cover most residential and light commercial use cases. cETLus listed under file 5000999, backed by a 5-year warranty and 35,000-hour rated life.
Ordering Info
Product Colour: White White
Application: Residential and Commercial Residential and Commercial
Product Lifetime: 35000 Hours 35000 Hours
Warranty: 5 Year(s) 5 Year(s)
Certifications: cETLus cETLus
Ordering Code: CL07-8W-12W-VAR-WH-V5 CL07-8W-12W-VAR-WH-V5
Model Number: CLEL07R12W-VAR-WH-V5 CLEL07R12W-VAR-WH-V5
Size: 7" 7"
Performance Data
Nominal Input Current: 0.19 A 0.19 A
Suitable Conditions: Damp Damp
Maximum Operating Temperature: 104 °F 40 ℃
Minimum Operating Temperature: -4 °F -20 ℃
CRI (Colour Rendering Index): 90+ 90+
Beam Spread: 110 ° 110 °
Dimming Type: Triac Triac
Efficacy: 100 lumens/Watt 100 lumens/Watt
Indoor/Outdoor: Indoor Indoor
Colour Temperature: 2700K | 3000K | 3500K | 4000K | 5000K 2700K | 3000K | 3500K | 4000K | 5000K
Rated Power(W): 10W | 12W | 8W 10W | 12W | 8W
Maximum Lumens: 1200 lm 1200 lm
Input Voltage: 120 Vac 120 Vac
Physical Data
Weight: 8.82 oz 250 g
Body material: Plastic Plastic
Height: 0.67 in 1.7 cm
Power cord length: 8 in 20.32 cm
Diameter: 7 in 18 cm

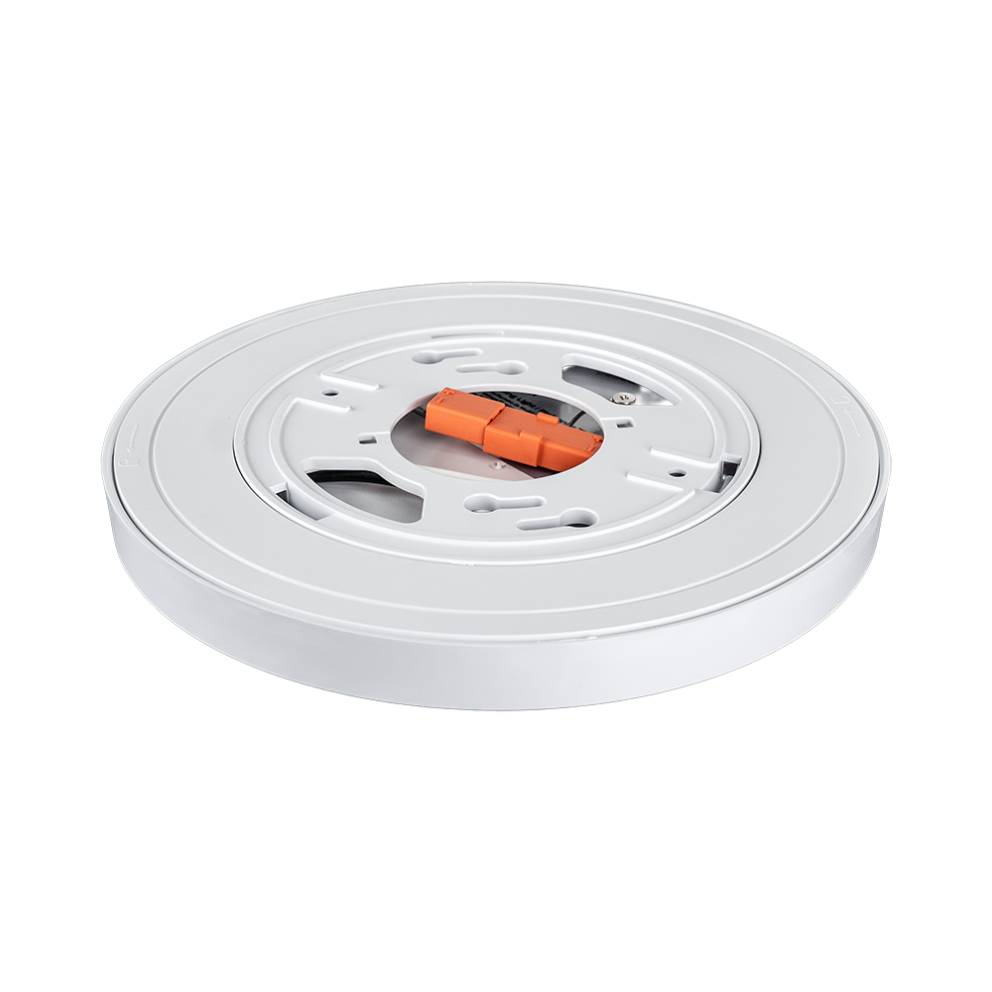

Mounting Type: Surface Mount Surface Mount
