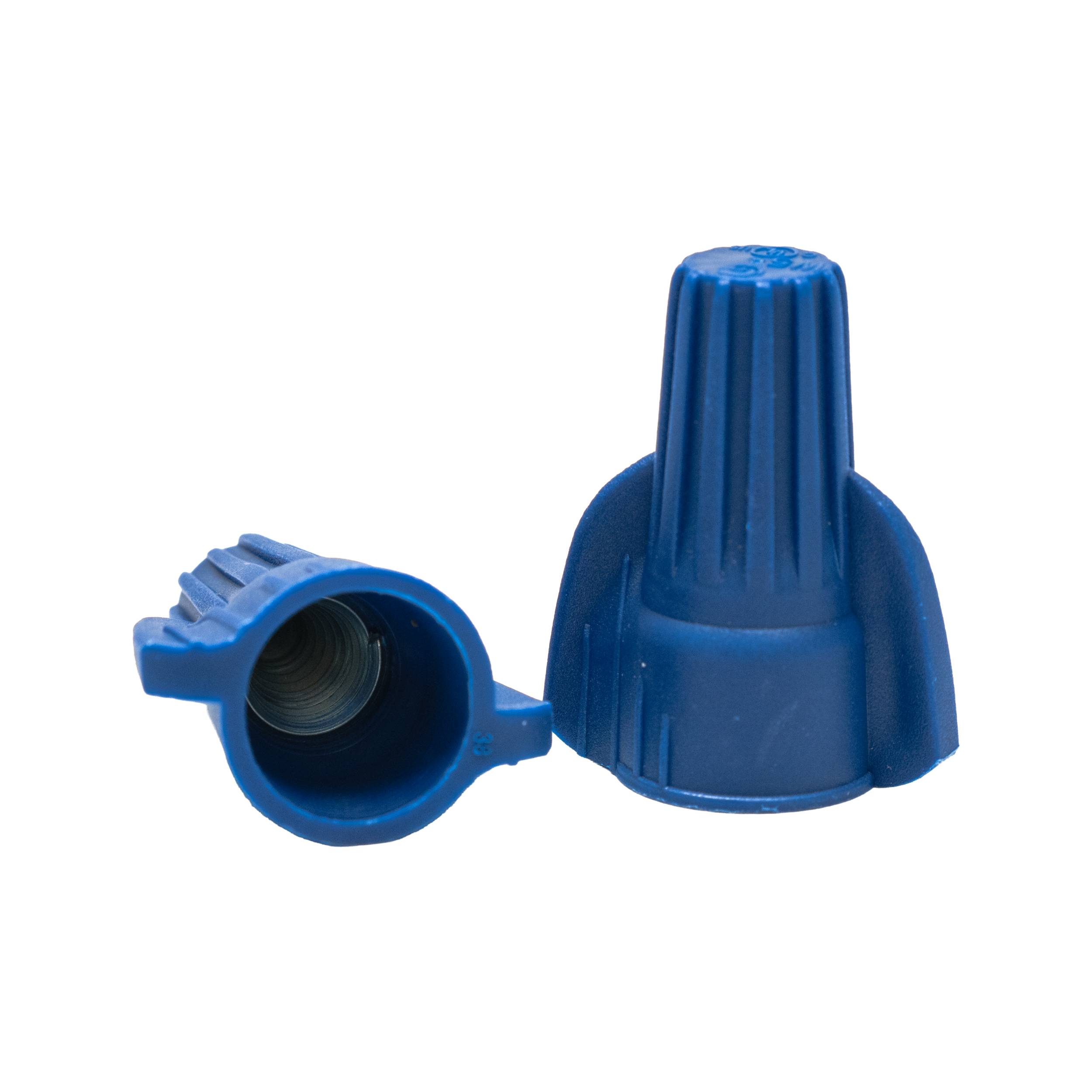

Two Arani TC-10-6-BL-V2 blue twist-on wire connectors, open end showing internal spring

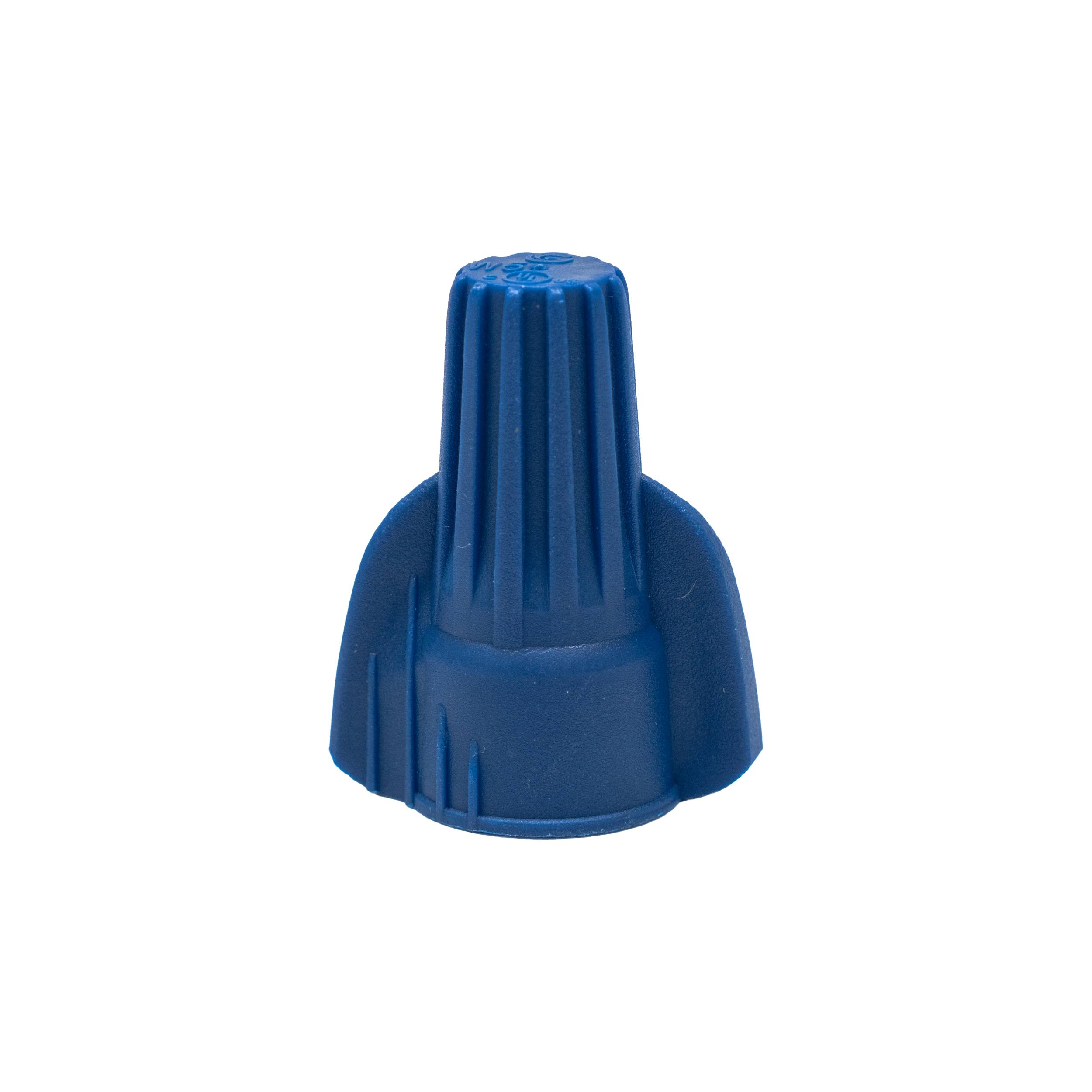

Arani TC-10-6-BL-V2 blue winged twist-on wire connector, side view

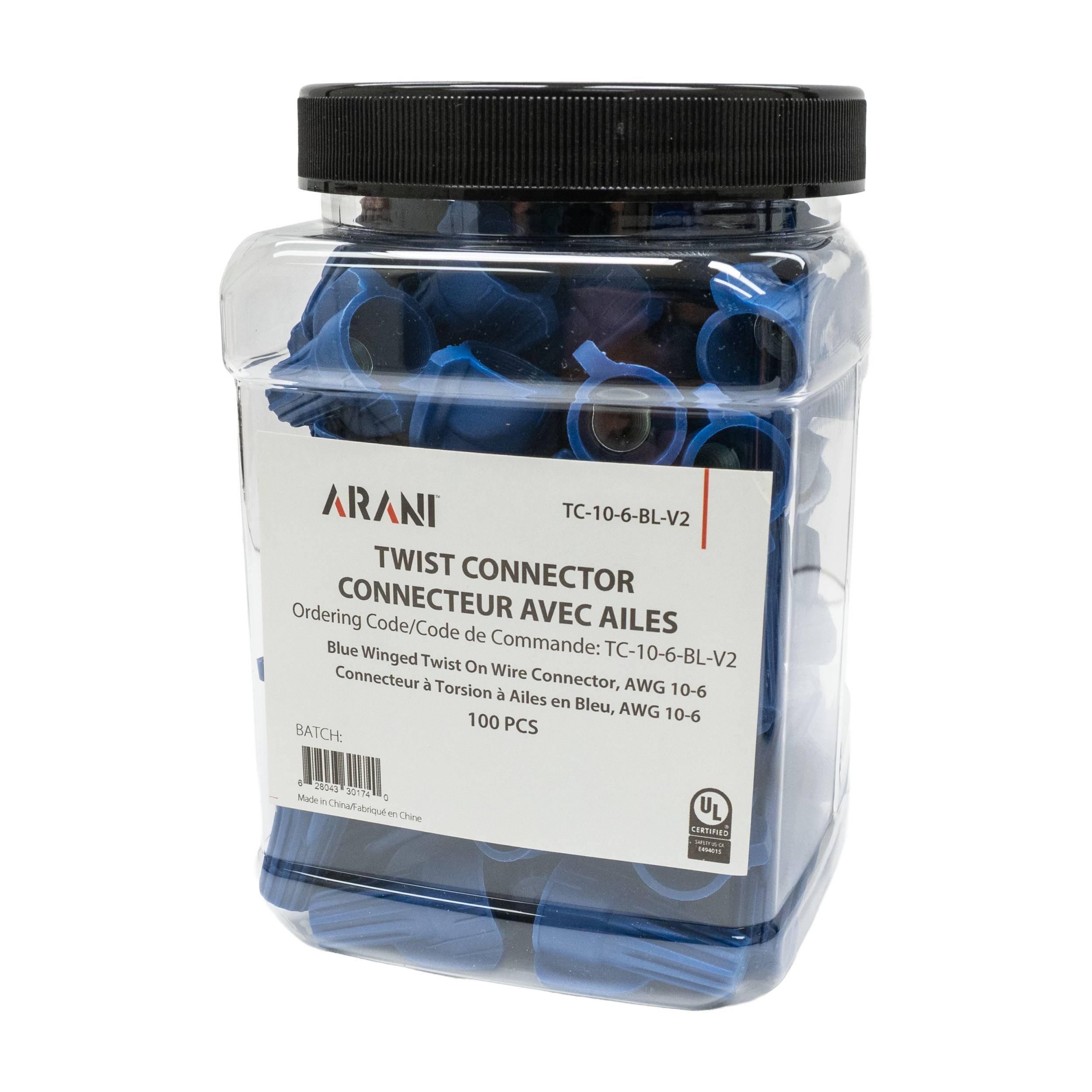

Arani TC-10-6-BL-V2 blue winged twist-on wire connectors, jar of 100, AWG 10-6

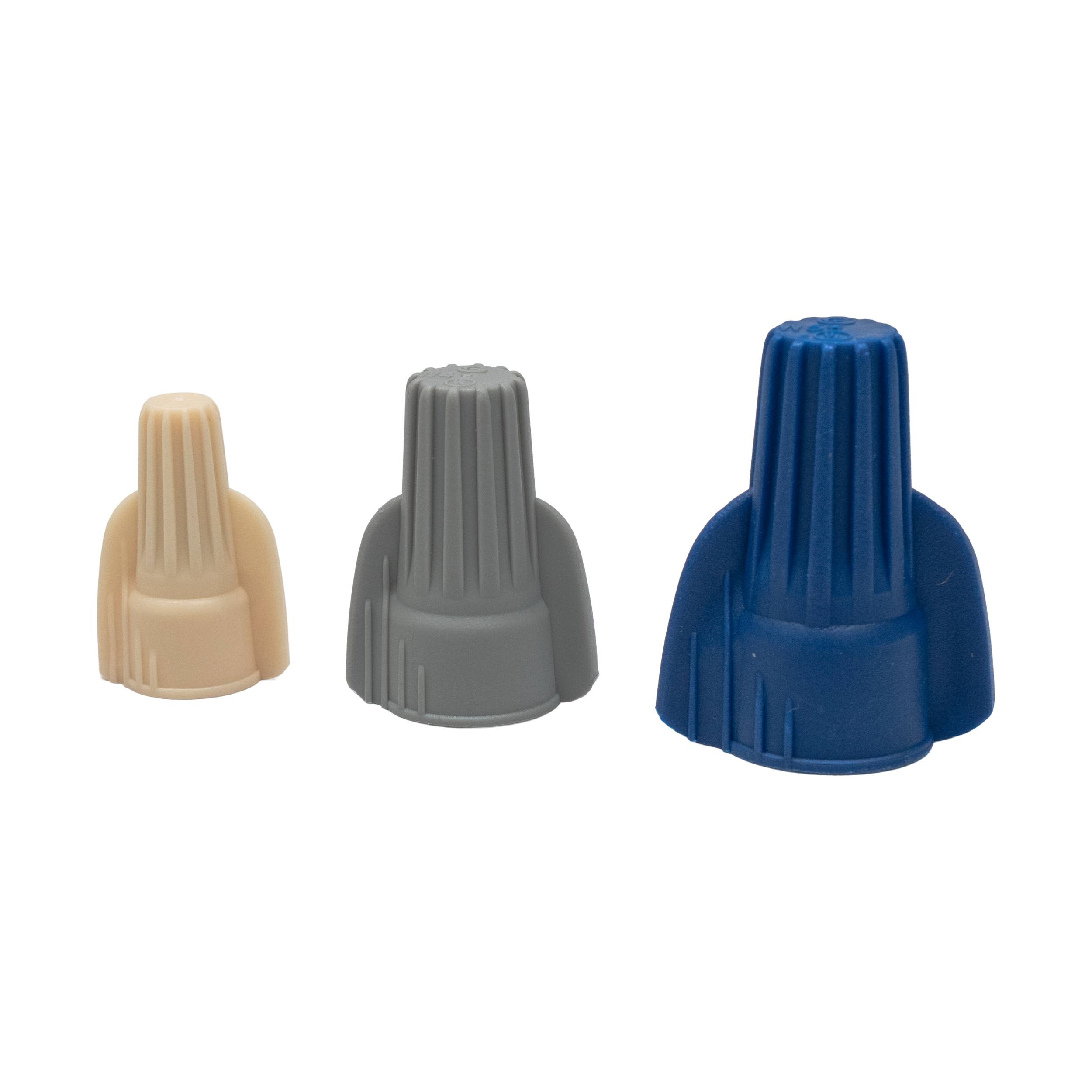

Arani V2 winged twist-on wire connector family: beige AWG 22-8, grey AWG 18-8, blue AWG 10-6
Two Arani TC-10-6-BL-V2 blue twist-on wire connectors, open end showing internal spring
Arani TC-10-6-BL-V2 blue winged twist-on wire connector, side view
Arani TC-10-6-BL-V2 blue winged twist-on wire connectors, jar of 100, AWG 10-6
Arani V2 winged twist-on wire connector family: beige AWG 22-8, grey AWG 18-8, blue AWG 10-6

TWIST WIRE CONNECTOR | 10-6 AWG | 100 PACK | BLUE

SKU: TC-10-6-BL-V2

UL Listed Canada and US

Use this Twist Wire Connector to connect 10-6 AWG copper wires. It features a strong galvanized steel spring and a large, grooved polypropylene shell, making it easy to hold the connector.

Ordering Info

Series: 6-10 Gauge 6-10 Gauge

Product Colour: Blue Blue

Box Quantity: 100 per box 100 per box

Certifications: cULus cULus

Ordering Code: TC-10-6-BL-V2 TC-10-6-BL-V2

Performance Data

Suitable Conditions: Dry Dry

Voltage Classification: 600V 600V

Maximum Operating Temperature: 221 °F 105 ℃

Minimum Operating Temperature: -4 °F -20 ℃

Physical Data

Body material: Polypropylene , Galvanized Carbon Steel Spring Polypropylene , Galvanized Carbon Steel Spring

Weight: 0.21 oz 6 g

Height: 1.57 in 3.98 cm

Inner Diameter: 0.68 in 1.73 cm
