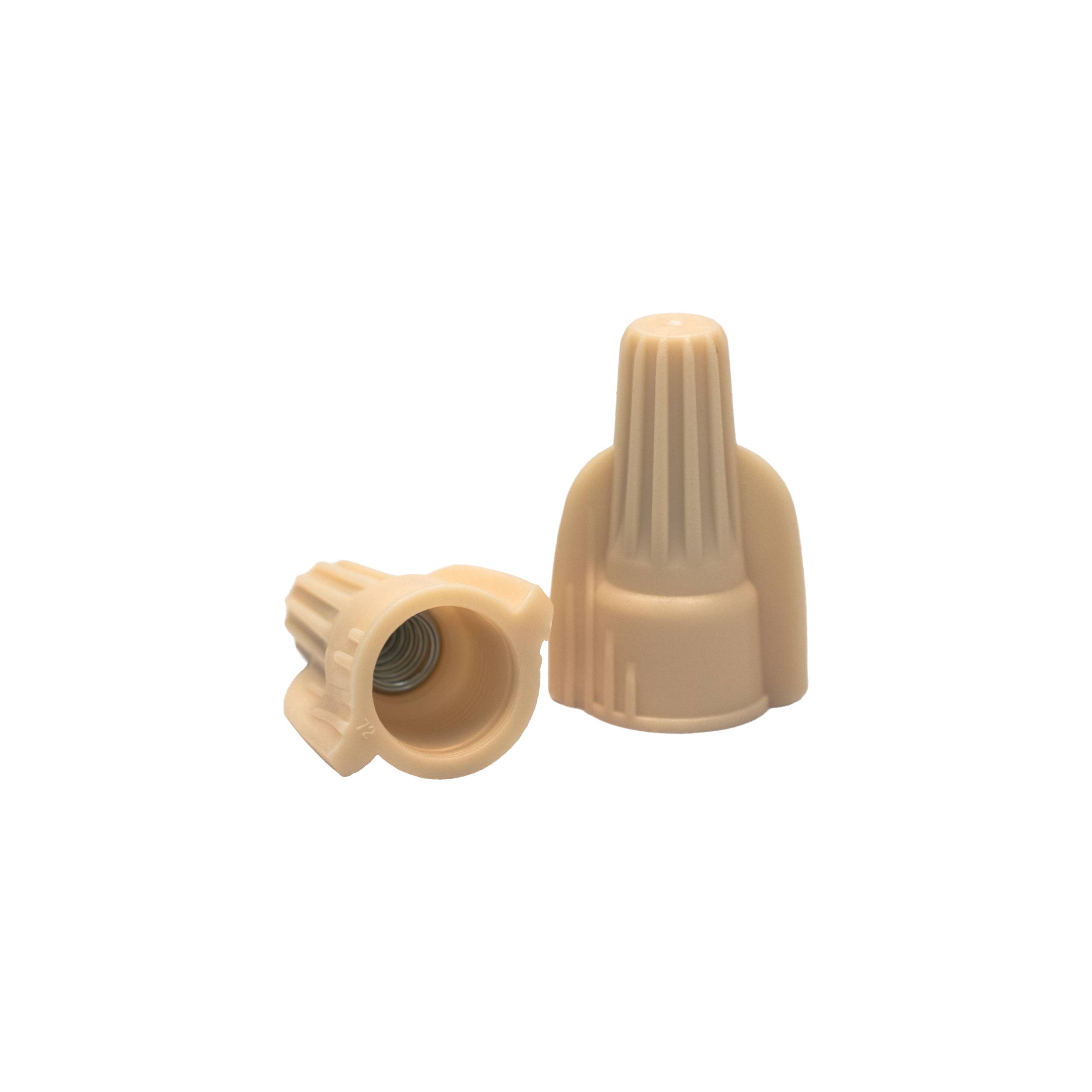

Two Arani TC-22-8-BE-V2 beige twist-on wire connectors, open end showing internal spring

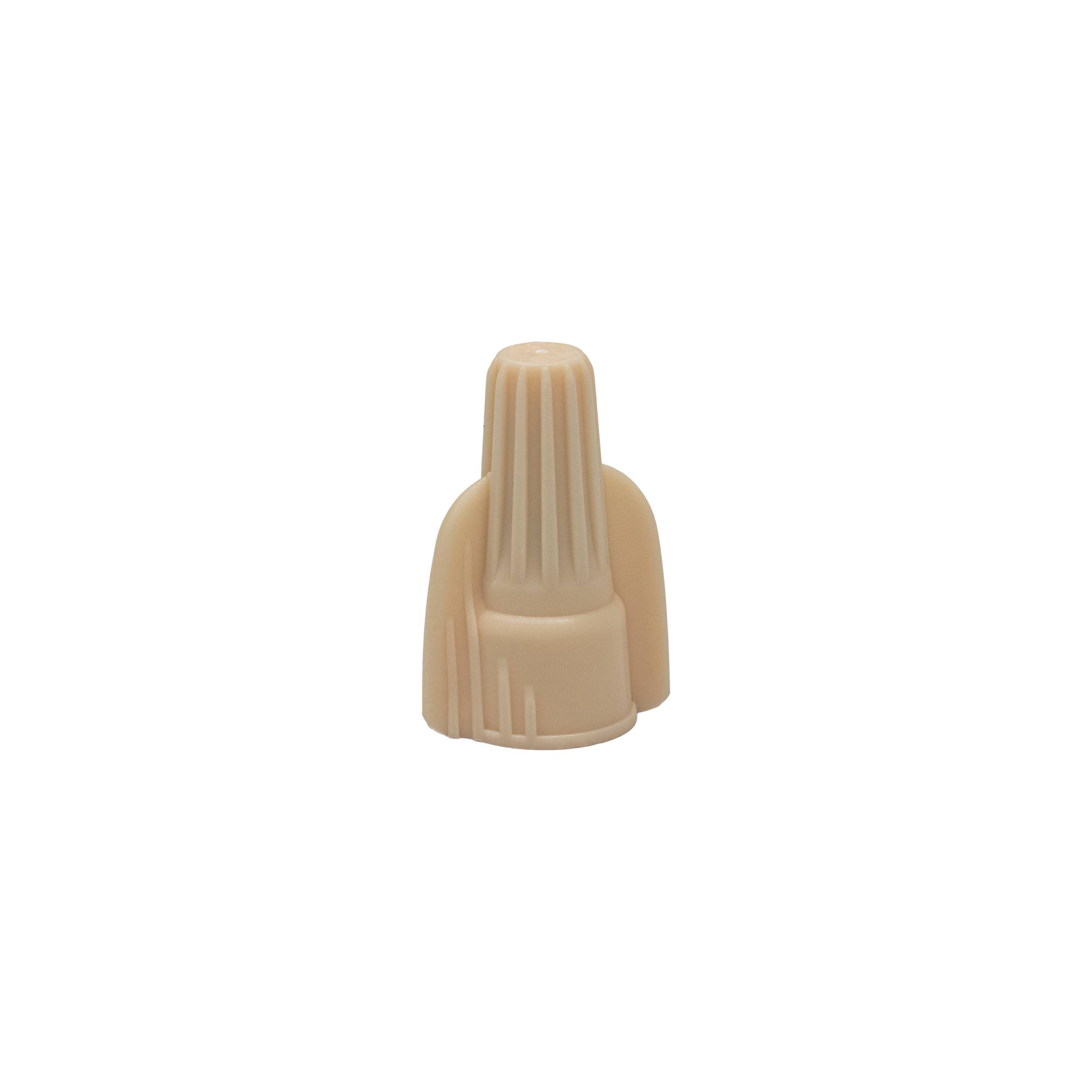

Arani TC-22-8-BE-V2 beige winged twist-on wire connector, side view

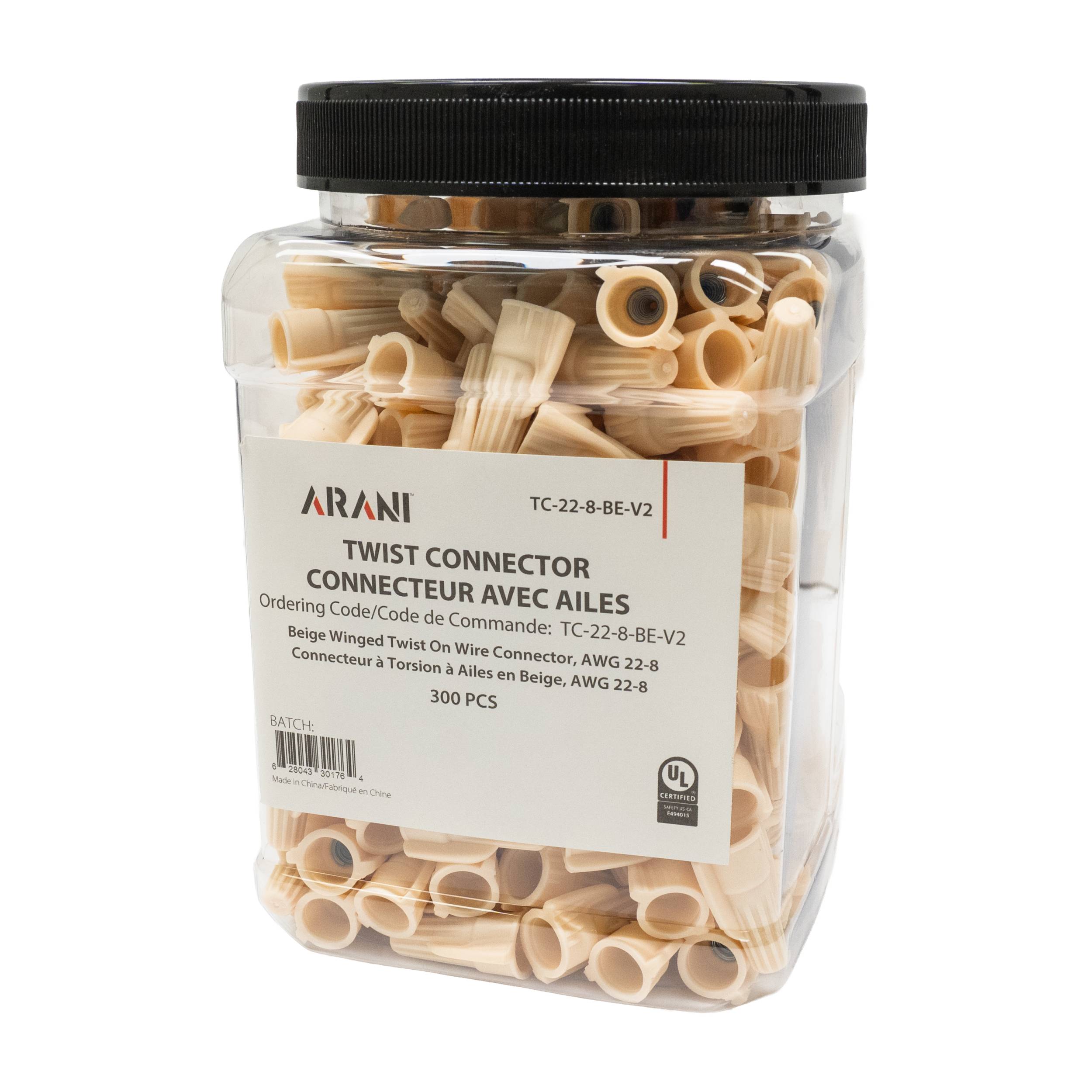

Arani TC-22-8-BE-V2 beige winged twist-on wire connectors, jar of 300, AWG 22-8
Arani V2 winged twist-on wire connector family: beige AWG 22-8, grey AWG 18-8, blue AWG 10-6
Two Arani TC-22-8-BE-V2 beige twist-on wire connectors, open end showing internal spring
Arani TC-22-8-BE-V2 beige winged twist-on wire connector, side view
Arani TC-22-8-BE-V2 beige winged twist-on wire connectors, jar of 300, AWG 22-8
Arani V2 winged twist-on wire connector family: beige AWG 22-8, grey AWG 18-8, blue AWG 10-6

TWIST WIRE CONNECTOR | 22-8 AWG | 300 PACK | BEIGE

SKU: TC-22-8-BE-V2

UL Listed Canada and US

This Beige Twist Wire Connector will help you connect copper electrical wires between 22-8 AWG. It is designed using a galvanized carbon steel spring and a large double-winged polypropylene shell so you can ensure a secure connection.

Ordering Info

Series: 22-8 Gauge 22-8 Gauge

Product Colour: Beige Beige

Box Quantity: 300 per box 300 per box

Certifications: cULus cULus

Ordering Code: TC-22-8-BE-V2 TC-22-8-BE-V2

Performance Data

Suitable Conditions: Dry Dry

Voltage Classification: 600V 600V

Maximum Operating Temperature: 221 °F 105 ℃

Minimum Operating Temperature: -4 °F -20 ℃

Physical Data

Body material: Polypropylene , Galvanized Carbon Steel Spring Polypropylene , Galvanized Carbon Steel Spring

Weight: 0.03 oz 1 g

Height: 1.14 in 2.89 cm

Inner Diameter: 0.68 in 1.73 cm
