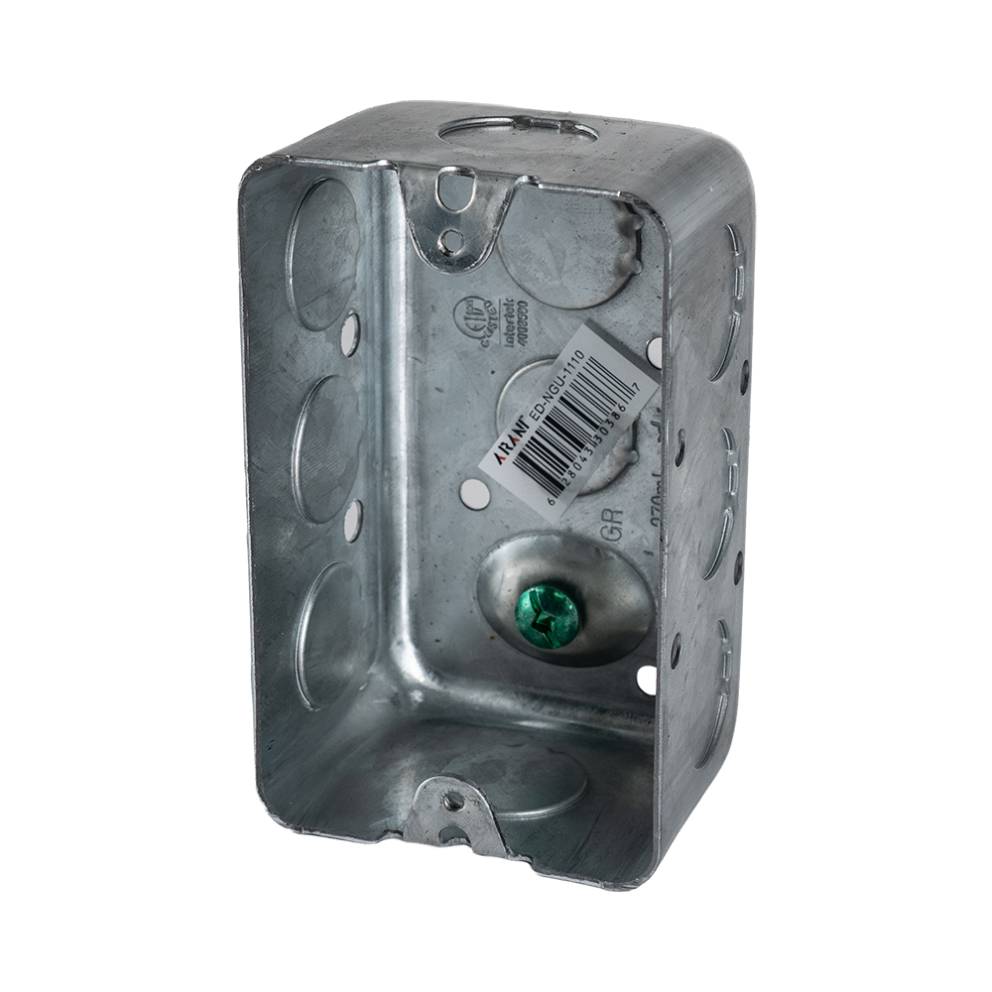

Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, three-quarter view with green grounding screw and barcode label

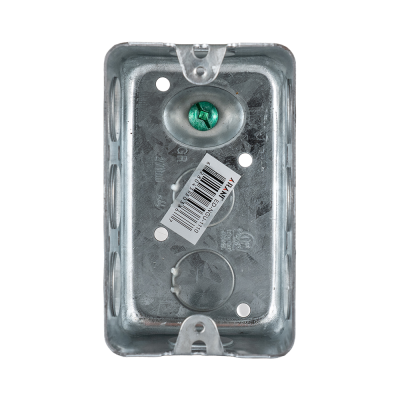

Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, front view with green grounding screw and mounting ears

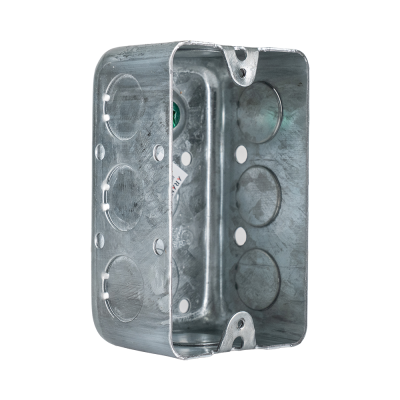

Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, three-quarter view with conduit knockouts across side wall

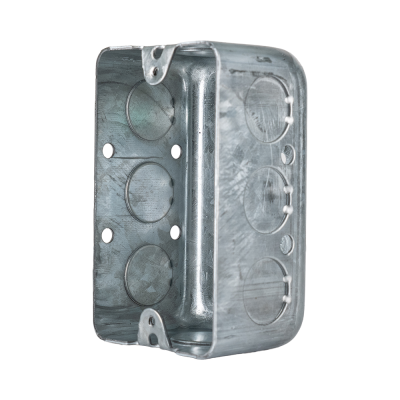

Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, rear three-quarter view with side knockouts and mounting ears

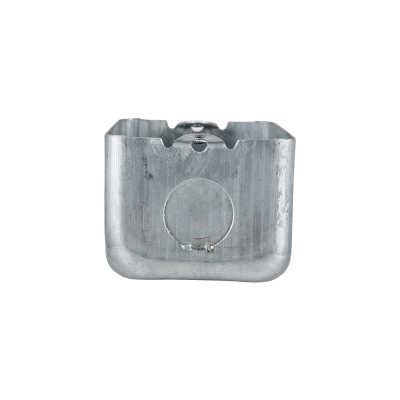

Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, top view with single round knockout in end wall

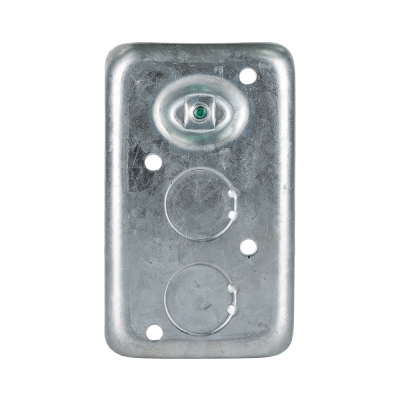

Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, rear view with grounding screw boss and two knockouts
Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, three-quarter view with green grounding screw and barcode label
Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, front view with green grounding screw and mounting ears
Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, three-quarter view with conduit knockouts across side wall
Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, rear three-quarter view with side knockouts and mounting ears
Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, top view with single round knockout in end wall
Arani 1110 utility box, 1-7/8 in deep, 16.5 cu in, knockouts, rear view with grounding screw boss and two knockouts

1110 | UTILITY BOX 1 7/8" D

SKU: ED-NGU-1110

Electrical Testing Laboratories logo

Arani Branded, built for Canadian electricians and contractors. Discover the excellence of our latest metal electrical boxes, crafted from durable 1.2mm galvanized metal. Upgrade your electrical systems with our superior-quality devices, designed to outperform previous models. Don't miss out on our unbeatable prices - seize the opportunity to revolutionize your installations today!

Related Products
Arani 1110-R utility box extension ring, 1-7/8 in deep, knockouts, three-quarter view: hollow ring with no back wall
ED-UEX-1110-R

1110-R - 1 7/8" Deep Utility Box Extension w/Knockouts

11C1 - 2 3/8" Wide - Duplex Outlet Image
ED-UBC-11C1

11C1 | Utility Box Cover 2 1/2"W

11C10 - 2 3/8" Wide - Decorator/GFCI Image
ED-UBC-11C10

11C10 | Utility Box Cover 2 3/8"W (Decorator/GFCI)

11C4 - 2 3/8" Wide - Blank Image
ED-UBC-11C4

11C4 | Utility Box Cover 2 3/8"W

11C5 - 2 3/8" Wide - Single Switch Image
ED-UBC-11C5

11C5 | Utility Box Cover 2 3/8"W

emt cmcn s050 side view
EMT-CMCN-S050

EMT Compression Connector | Steel | 1/2"

EMT-CMCN-S050-I Front View
EMT-CMCN-S050-I

EMT Insulated Compression Connector | Steel | 1/2"

EMT Set Screw Connector | Steel | 1/2" | image
EMT-SSCN-S050

1/2" EMT Set Screw Connector

EMT SSCN S050 Insulated 1/2" EMT Compression Coupling front view
EMT-SSCN-S050-I

EMT Insulated Set Screw Connector | Steel | 1/2"

Specs sheet

Download the specifications sheet.

Ordering Info

Series: Non-Gangable Device Boxes Non-Gangable Device Boxes

Size: 4” x 2 3/8” 4” x 2 3/8”

Gangable: No No

Warranty: 1 Year(s) 1 Year(s)

Certifications: cETL cETL

Ordering Code: ED-NGU-1110 ED-NGU-1110

Performance Data

Voltage Classification: Regular (120V) Regular (120V)

Physical Data

Body material: Galvanized Steel Galvanized Steel

Weight: 6 oz 171.6 g

Width: 2 3/8 in 6.03 cm

Height: 4 in 10.16 cm

Metal Thickness: 0.047 in 1.2 mm

Depth: 1 7/8 in 4.76 cm

Clamp type: Conduit Knockout Conduit Knockout

Raised ground screw: Yes Yes

Knockout sizes: 1/2 in 1.27 cm

Number of gangs: 1 Gang(s) 1 Gang(s)

Number of knockouts/Inlets: 10 10

Volume: 16.5 cu. in. 270 ml

Weight: 0.375 lb(s) 0.172 kg(s)
