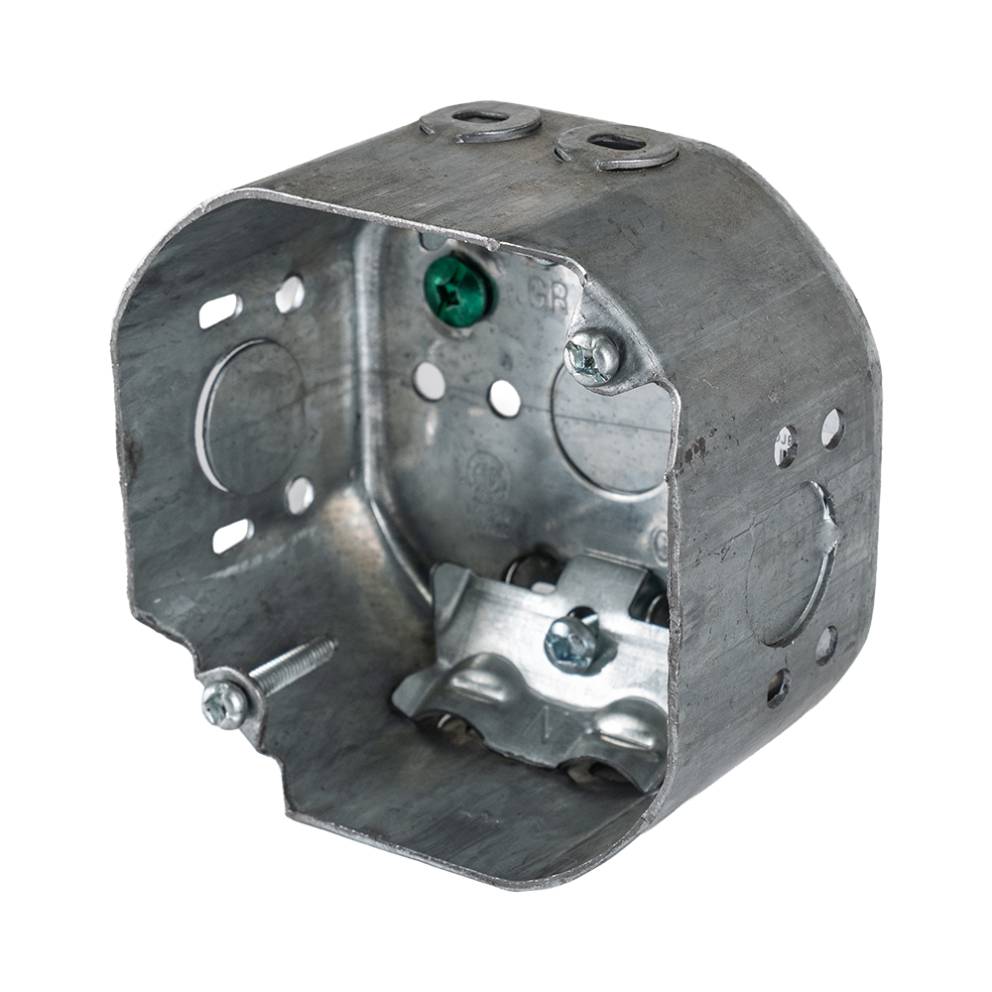

Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, three-quarter view with cable clamp in the box floor

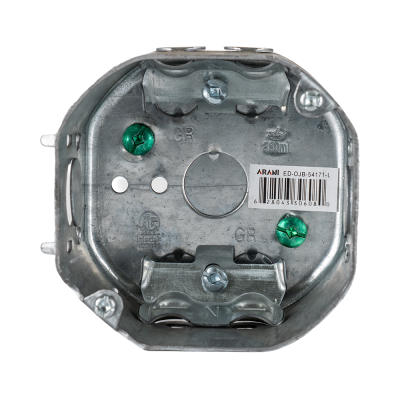

Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, front view with grounding screws and cable clamps

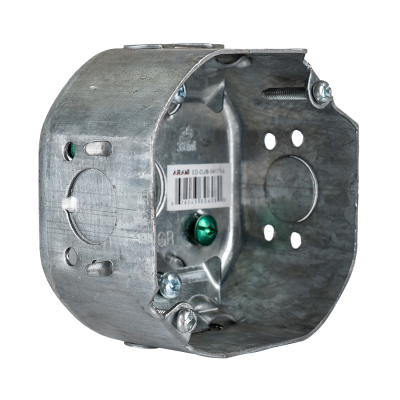

Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, three-quarter view with side knockouts and barcode label

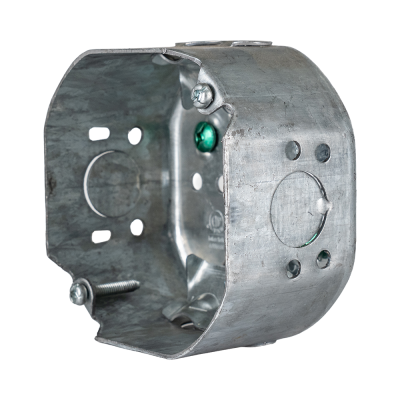

Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, three-quarter view with side wall knockout and nail holes

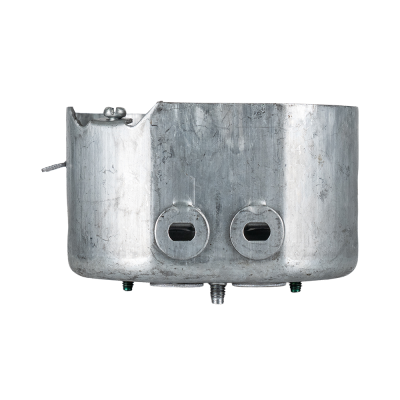

Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, side view with two oval side knockouts

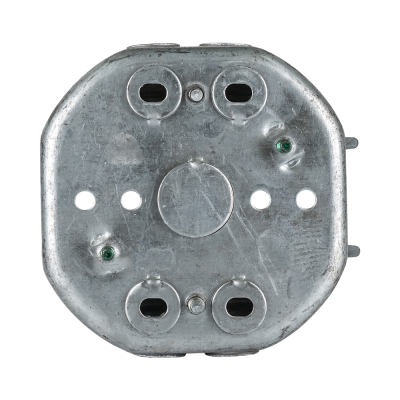

Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, rear view with four oval knockouts around centre knockout
Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, three-quarter view with cable clamp in the box floor
Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, front view with grounding screws and cable clamps
Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, three-quarter view with side knockouts and barcode label
Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, three-quarter view with side wall knockout and nail holes
Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, side view with two oval side knockouts
Arani 54171-L octagon junction box, 2-1/8 in deep, NMD90, rear view with four oval knockouts around centre knockout

54171-L | OCTAGON JUNCTION BOX 2 1/8" D

SKU: ED-OJB-54171-L

Electrical Testing Laboratories logo

Arani Branded, built for Canadian electricians and contractors. Discover the excellence of our metal electrical boxes, crafted from durable 1.2mm galvanized metal. Upgrade your electrical systems with our superior-quality junction boxes, designed to outperform previous models. Don't miss out on our unbeatable prices - seize the opportunity to revolutionize your installations today!

Related Products
54C1 - 4" Round Cover - Blank Image
ED-RBC-54C1

54C1 | Octagon Box Cover 4"

54C6 - 4" Round Cover with 1/2" Centre Knockout Image
ED-RBC-54C6

54C6 | Octagon Box Cover 4"

Arani 54171-K octagon junction box, 2-1/8 in deep, knockouts, three-quarter view with green grounding screw in the floor
ED-OJB-54171-K

54171-K | Octagon Junction Box 2 1/8" D

Arani 54171-LB octagon ceiling box, 2-1/8 in deep, side mount bracket, three-quarter view with side mount bracket folded out
ED-OJB-54171-LB

54171-LB - 2 1/8" Deeps Ceiling Box w/Side Mount Bracket, w/Clamps

Arani 56111 round pancake ceiling box, 1/2 in deep, knockouts, three-quarter view with shallow depth
ED-OJB-56111

56111 | Ceiling Pancake Box 1/2" D

Specs sheet

Download the specifications sheet.

Ordering Info

Series: Octagonal Metal Boxes Octagonal Metal Boxes

Size: 4" 4"

Gangable: No No

Warranty: 1 Year(s) 1 Year(s)

Certifications: cETL cETL

Ordering Code: ED-OJB-54171-L ED-OJB-54171-L

Performance Data

Voltage Classification: Regular (120V) Regular (120V)

Physical Data

Body material: Galvanized Steel Galvanized Steel

Weight: 7.9 oz 224.5 g

Metal Thickness: 0.047 in 1.2 mm

Depth: 2 1/8 in 5.40 cm

Diameter: 4 in 10.16 cm

Clamp type: Non Metallic Sheated Clamp (NMD90) Non Metallic Sheated Clamp (NMD90)

Mounting Ears: No No

Raised ground screw: No No

Knockout sizes: 1/2 in 1.27 cm

Stud Mounting Type: Wood Stud Wood Stud

Number of knockouts/Inlets: 3 3

Volume: 21 cu. in. 344 ml

Weight: 0.494 lb(s) 0.224 kg(s)
