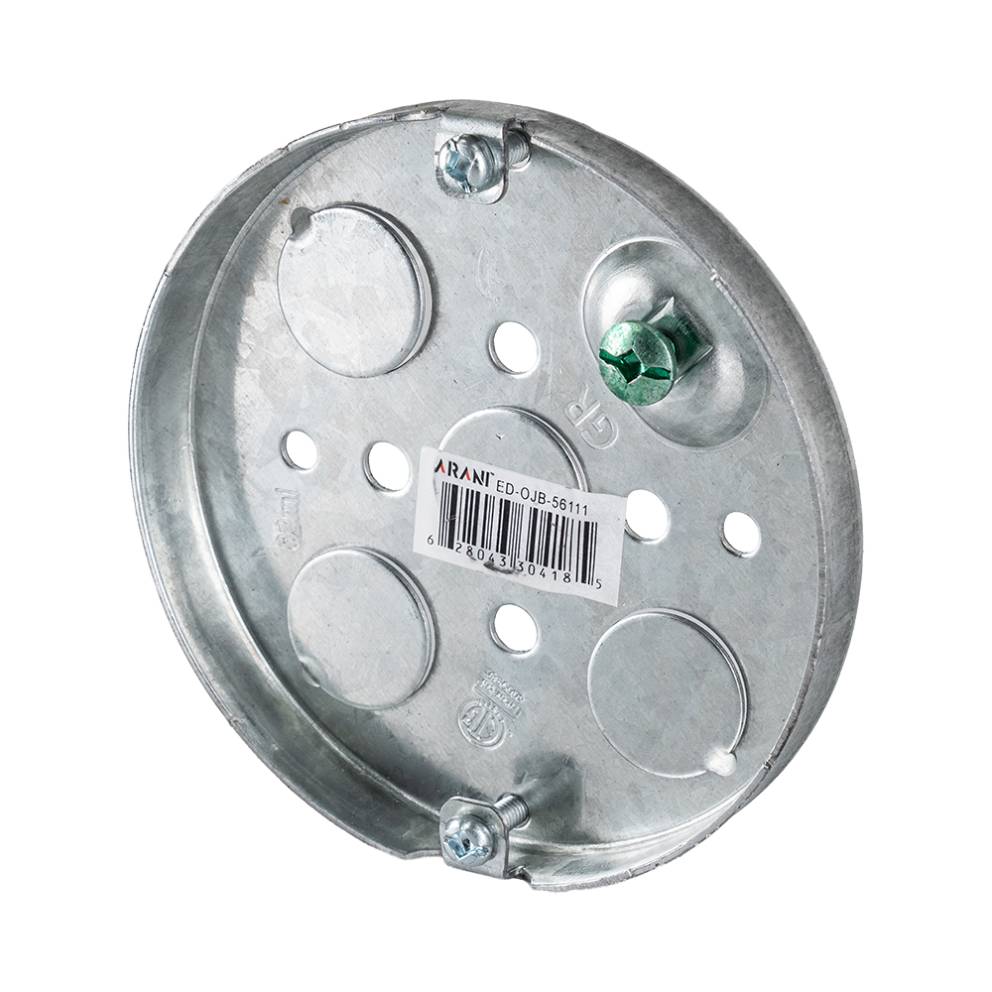

Arani 56111 round pancake ceiling box, 1/2 in deep, knockouts, three-quarter view with shallow depth

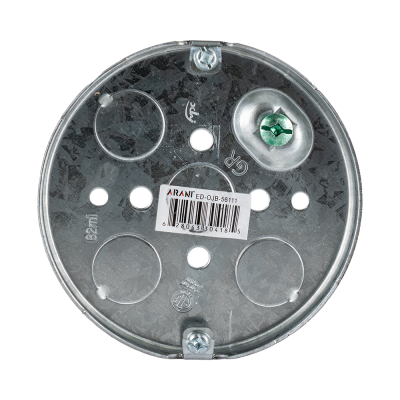

Arani 56111 round pancake ceiling box, 1/2 in deep, knockouts, front view: round floor with fixture screw bosses

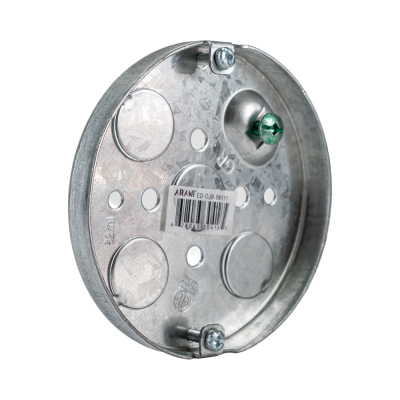

Arani 56111 round pancake ceiling box, 1/2 in deep, knockouts, three-quarter view with very shallow round rim

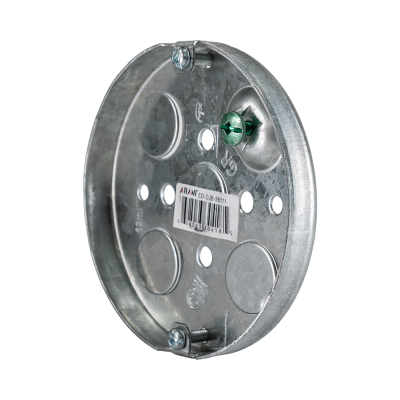

Arani 56111 round pancake ceiling box, 1/2 in deep, knockouts, three-quarter view with steep angle showing the shallow depth

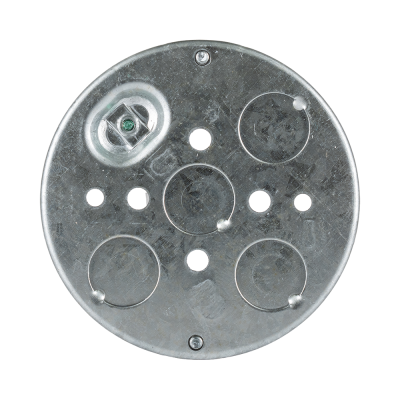

Arani 56111 round pancake ceiling box, 1/2 in deep, knockouts, rear view with five round back knockouts

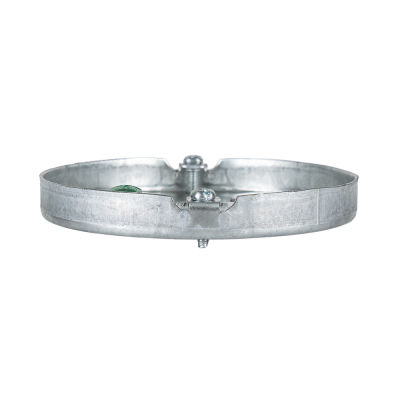

Arani 56111 round pancake ceiling box, 1/2 in deep, knockouts, side view with shallow depth seen edge-on

56111 | CEILING PANCAKE BOX 1/2" D

SKU: ED-OJB-56111

Electrical Testing Laboratories logo

Arani Branded, built for Canadian electricians and contractors. Discover the excellence of our metal electrical boxes, crafted from durable 1.2mm galvanized metal. Upgrade your electrical systems with our superior-quality junction boxes, designed to outperform previous models. Don't miss out on our unbeatable prices - seize the opportunity to revolutionize your installations today!\

Diameter: 4 in

Related Products
54C1 - 4" Round Cover - Blank Image
ED-RBC-54C1

54C1 | Octagon Box Cover 4"

54C6 - 4" Round Cover with 1/2" Centre Knockout Image
ED-RBC-54C6

54C6 | Octagon Box Cover 4"

Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, three-quarter view with green grounding screw in the floor
ED-OJB-54151-K

54151-K | Octagon Junction Box 1 1/2" D

Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, three-quarter view with cable clamp in the box floor
ED-OJB-54151-L

54151-L | Octagon Junction Box 1 1/2" D

Arani 54151-LA octagon junction box, 1-1/2 in deep, AC90, three-quarter view with armoured cable clamps in the floor
ED-OJB-54151-LA

54151-LA | Octagon Junction Box 1 1/2" D

Arani 54151-LB octagon box, 1-1/2 in deep, side mount bracket, three-quarter view with side mount bracket folded out
ED-OJB-54151-LB

1 1/2" Deep Octagon Box (with Side Mount Bracket & Clamps)

Arani 54151-LD octagon ceiling box, 1-1/2 in deep, swing-arm brackets, three-quarter view with two swing-arm brackets folded out
ED-OJB-54151-LD

54151-LD - 1 1/2" Deep Ceiling Box w/Swing-Arm Brackets

Arani 54151-KSSX octagon steel stud box, 1-1/2 in deep, knockouts, three-quarter view with octagonal interior
ED-SSB-54151-KSSX

54151-KSSX | Wraparound Junction Box 1 1/2" D

Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, three-quarter view: open interior with bracket folded out
ED-SSB-54151-LSSAX

54151-LSSAX | Wraparound Junction Box 1 1/2" D

Specs sheet

Download the specifications sheet.

Ordering Info

Series: Octagonal Metal Boxes Octagonal Metal Boxes

Size: 4" 4"

Gangable: No No

Warranty: 1 Year(s) 1 Year(s)

Certifications: cETL cETL

Ordering Code: ED-OJB-56111 ED-OJB-56111

Performance Data

Voltage Classification: Regular (120V) Regular (120V)

Physical Data

Body material: Galvanized Steel Galvanized Steel

Weight: 3.8 oz 108 g

Metal Thickness: 0.047 in 1.2 mm

Depth: 1/2 in 1.27 cm

Diameter: 4 in 10.16 cm

Clamp type: Conduit Knockout Conduit Knockout

Mounting Ears: No No

Raised ground screw: Yes Yes

Knockout sizes: 1/2 in 1.27 cm

Stud Mounting Type: Wood Stud Wood Stud

Number of knockouts/Inlets: 4 4

Volume: 5 cu. in. 82 ml

Weight: 0.238 lb(s) 0.108 kg(s)
