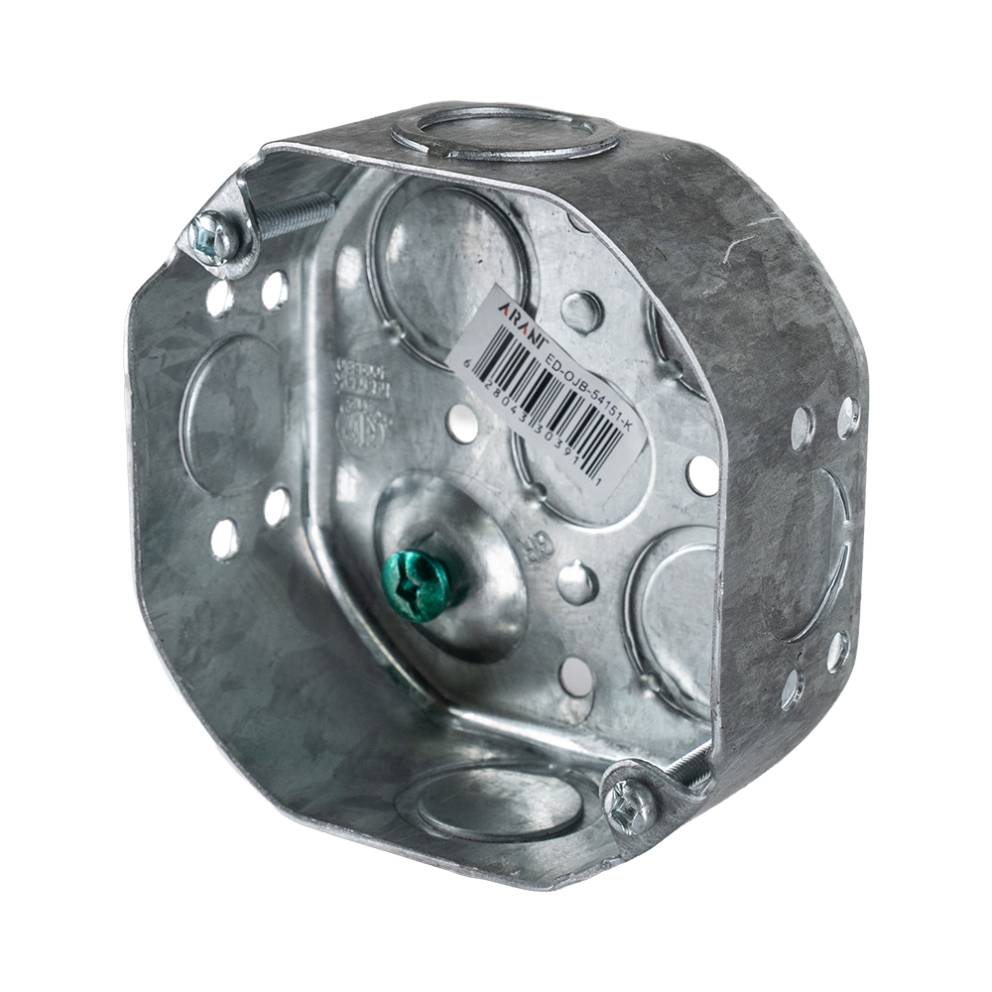

Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, three-quarter view with green grounding screw in the floor

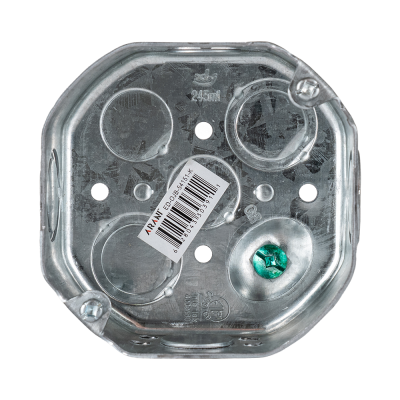

Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, front view with grounding screw and floor knockouts

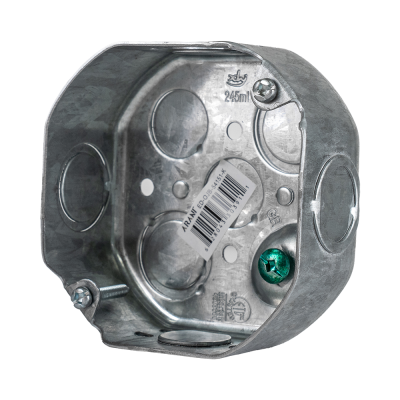

Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, three-quarter view with grounding screw beside side knockout

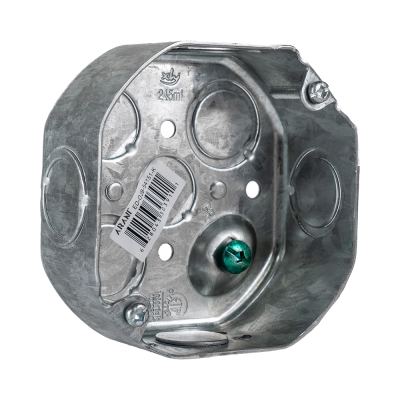

Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, three-quarter view with open octagon front and grounding screw

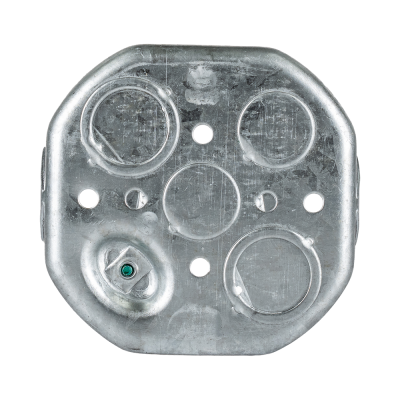

Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, rear view with embossed knockout circles on the back

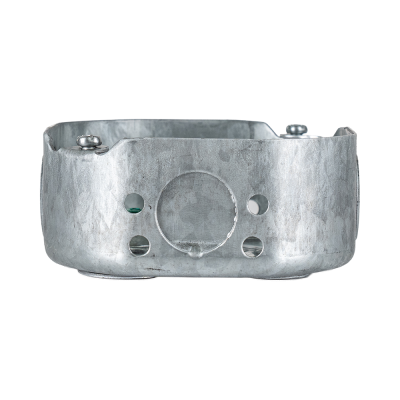

Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, side view with four small side holes around knockout
Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, three-quarter view with green grounding screw in the floor
Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, front view with grounding screw and floor knockouts
Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, three-quarter view with grounding screw beside side knockout
Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, three-quarter view with open octagon front and grounding screw
Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, rear view with embossed knockout circles on the back
Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, side view with four small side holes around knockout

54151-K | OCTAGON JUNCTION BOX 1 1/2" D

SKU: ED-OJB-54151-K

Electrical Testing Laboratories logo

Discover the excellence of our metal electrical boxes, crafted from durable 1.2mm galvanized metal. Upgrade your electrical systems with our superior-quality junction boxes, designed to outperform previous models. Don't miss out on our unbeatable prices - seize the opportunity to revolutionize your installations today!

Related Products
Arani ED-OEX-55151-K 4 in. octagon box extension ring, 1-1/2 in. deep, shown at an angle with concentric knockouts and green gro
ED-OEX-55151-K

55151-K - 4" Box Extension Ring with 1 1/2" depth and concentric knockout. 50/Box

54C1 - 4" Round Cover - Blank Image
ED-RBC-54C1

54C1 | Octagon Box Cover 4"

54C6 - 4" Round Cover with 1/2" Centre Knockout Image
ED-RBC-54C6

54C6 | Octagon Box Cover 4"

Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, three-quarter view with cable clamp in the box floor
ED-OJB-54151-L

54151-L | Octagon Junction Box 1 1/2" D

Arani 54151-LA octagon junction box, 1-1/2 in deep, AC90, three-quarter view with armoured cable clamps in the floor
ED-OJB-54151-LA

54151-LA | Octagon Junction Box 1 1/2" D

Arani 54151-LB octagon box, 1-1/2 in deep, side mount bracket, three-quarter view with side mount bracket folded out
ED-OJB-54151-LB

1 1/2" Deep Octagon Box (with Side Mount Bracket & Clamps)

Arani 54151-LD octagon ceiling box, 1-1/2 in deep, swing-arm brackets, three-quarter view with two swing-arm brackets folded out
ED-OJB-54151-LD

54151-LD - 1 1/2" Deep Ceiling Box w/Swing-Arm Brackets

54151-KSSX - 1 1/2" Deep Octagon Ceiling Box w/ Knockouts Image
ED-SSB-54151-KSSX

54151-KSSX | Wraparound Junction Box 1 1/2" D

54151-LSSAX - 1 1/2" Deep Octagon Ceiling Box w/ Armoured Clamps Image
ED-SSB-54151-LSSAX

54151-LSSAX | Wraparound Junction Box 1 1/2" D

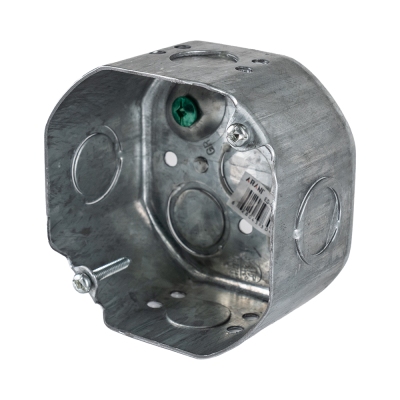

Arani 54171-K octagon junction box, 2-1/8 in deep, knockouts, three-quarter view with green grounding screw in the floor
ED-OJB-54171-K

54171-K | Octagon Junction Box 2 1/8" D

Specs sheet

Download the specifications sheet.

Ordering Info

Series: Octagonal Metal Boxes Octagonal Metal Boxes

Size: 4" 4"

Gangable: No No

Warranty: 1 Year(s) 1 Year(s)

Certifications: cETL cETL

Ordering Code: ED-OJB-54151-K ED-OJB-54151-K

Performance Data

Voltage Classification: Regular (120V) Regular (120V)

Physical Data

Body material: Galvanized Steel Galvanized Steel

Weight: 5.7 oz 161 g

Metal Thickness: 0.047 in 1.2 mm

Depth: 1 1/2 in 3.81 cm

Diameter: 4 in 10.16 cm

Clamp type: Conduit Knockout Conduit Knockout

Mounting Ears: No No

Raised ground screw: Yes Yes

Knockout sizes: 1/2 in 1.27 cm

Stud Mounting Type: Wood Stud Wood Stud

Number of knockouts/Inlets: 8 8

Volume: 15 cu. in. 246 ml

Weight: 0.356 lb(s) 0.161 kg(s)
