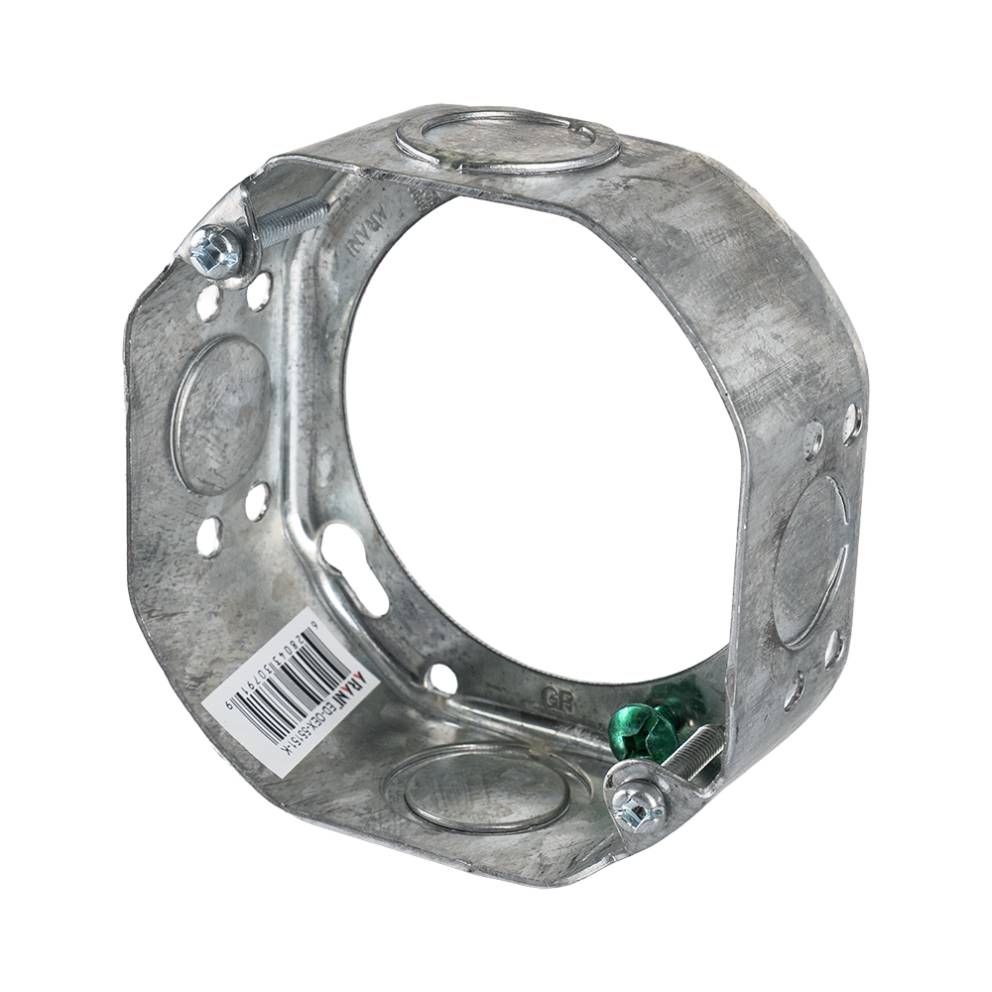

Arani ED-OEX-55151-K 4 in. octagon box extension ring, 1-1/2 in. deep, shown at an angle with concentric knockouts and green gro

55151-K - 4" Box Extension Ring with 1 1/2" depth and concentric knockout. 50/Box

x

Checkout

Arani ED-OEX-55151-K 4 in. octagon box extension ring, 1-1/2 in. deep, shown at an angle with concentric knockouts and green gro

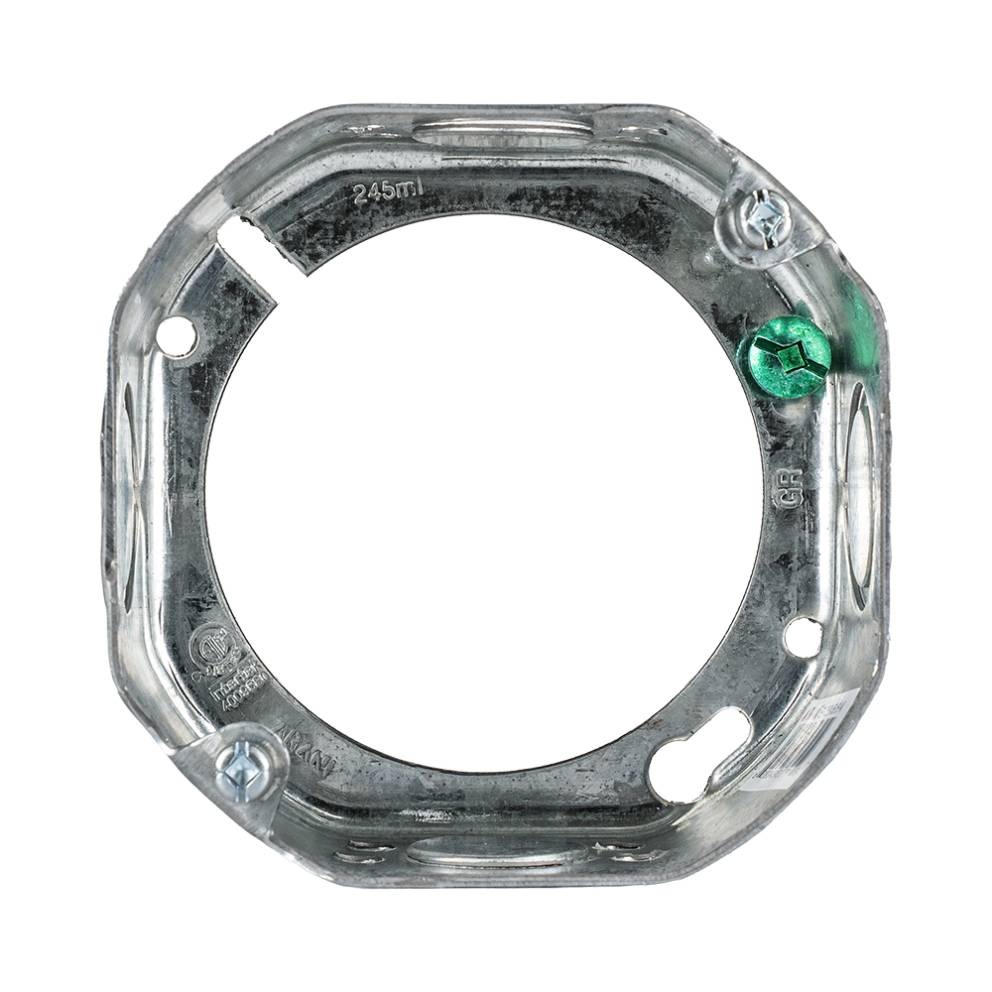

Front view of the Arani ED-OEX-55151-K octagon box extension ring showing the 245 ml capacity stamp, mounting screws and green g

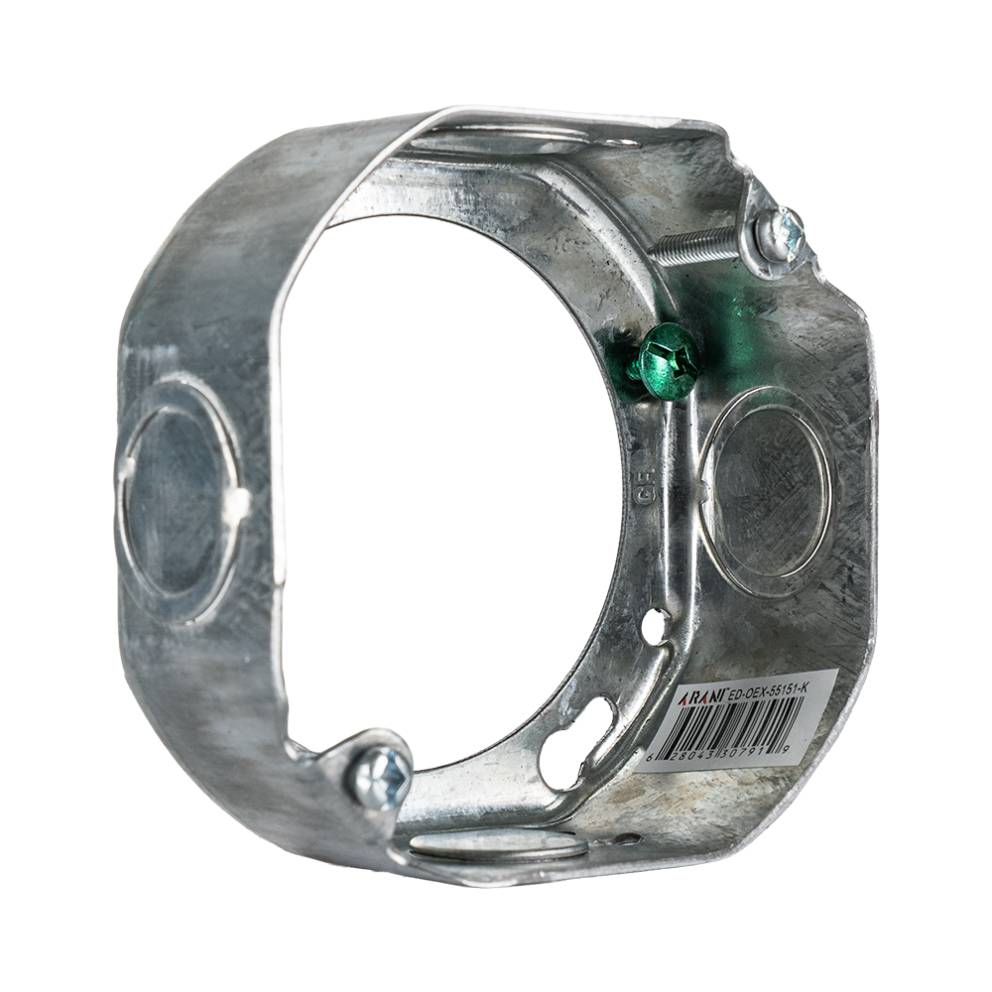

Arani ED-OEX-55151-K octagon extension ring at an angle showing the side knockouts and the product barcode label

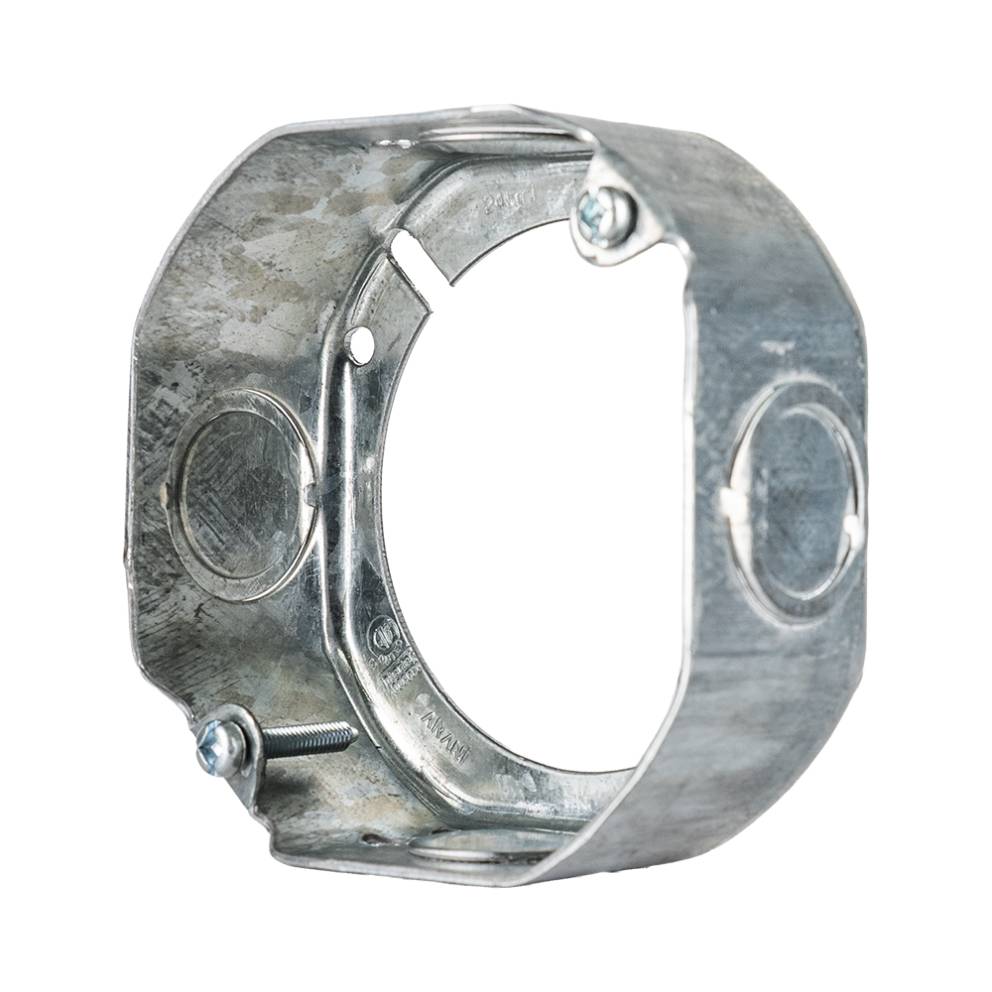

Interior angled view of the Arani ED-OEX-55151-K octagon extension ring showing the mounting screws and cETLus certification sta

Arani ED-OEX-55151-K 4 in. octagon box extension ring, 1-1/2 in. deep, shown at an angle with concentric knockouts and green gro

Front view of the Arani ED-OEX-55151-K octagon box extension ring showing the 245 ml capacity stamp, mounting screws and green g

Arani ED-OEX-55151-K octagon extension ring at an angle showing the side knockouts and the product barcode label

Interior angled view of the Arani ED-OEX-55151-K octagon extension ring showing the mounting screws and cETLus certification sta

55151-K - 4" BOX EXTENSION RING WITH 1 1/2" DEPTH AND CONCENTRIC KNOCKOUT. 50/BOX

SKU: ED-OEX-55151-K

Arani Branded, built for Canadian electricians and contractors. Pressed from 1.2mm galvanized metal, our new electrical devices are better than ever before. Take advantage of our incredible prices today!

Related Products

Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, three-quarter view with green grounding screw in the floor

ED-OJB-54151-K

54151-K | Octagon Junction Box 1 1/2" D

Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, three-quarter view with cable clamp in the box floor

ED-OJB-54151-L

54151-L | Octagon Junction Box 1 1/2" D

Arani 54151-LA octagon junction box, 1-1/2 in deep, AC90, three-quarter view with armoured cable clamps in the floor

ED-OJB-54151-LA

54151-LA | Octagon Junction Box 1 1/2" D

Arani 54151-LB octagon box, 1-1/2 in deep, side mount bracket, three-quarter view with side mount bracket folded out

ED-OJB-54151-LB

1 1/2" Deep Octagon Box (with Side Mount Bracket & Clamps)

Arani 54151-LD octagon ceiling box, 1-1/2 in deep, swing-arm brackets, three-quarter view with two swing-arm brackets folded out

ED-OJB-54151-LD

54151-LD - 1 1/2" Deep Ceiling Box w/Swing-Arm Brackets

Arani 54151-KSSX octagon steel stud box, 1-1/2 in deep, knockouts, three-quarter view with octagonal interior

ED-SSB-54151-KSSX

54151-KSSX | Wraparound Junction Box 1 1/2" D

Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, three-quarter view: open interior with bracket folded out

ED-SSB-54151-LSSAX

54151-LSSAX | Wraparound Junction Box 1 1/2" D

Specs sheet

Download the specifications sheet.

Metric

Imperial

Ordering Info

Series: Octagonal Metal Extensions Octagonal Metal Extensions

Size: 4" 4"

Gangable: No No

Warranty: 1 Year(s) 1 Year(s)

Certifications: cETL cETL

Ordering Code: ED-OEX-55151-K ED-OEX-55151-K

Performance Data

Voltage Classification: Regular (120V) Regular (120V)

Physical Data

Body material: Galvanized Steel Galvanized Steel

Weight: 4.5 oz 127 g

Metal Thickness: 0.047” in 1.2 mm

Depth: 1 1/2 in 3.81 cm

Diameter: 4 in 10.16 cm

Clamp type: Conduit Knockout Conduit Knockout

Mounting Ears: No No

Raised ground screw: No No

Knockout sizes: 1/2 in 1.27 cm

Stud Mounting Type: Wood Stud Wood Stud

Number of knockouts/Inlets: 4 4

Volume: 15 cu. in. 246 ml

Weight: 0.281 lb(s) 0.127 kg(s)
