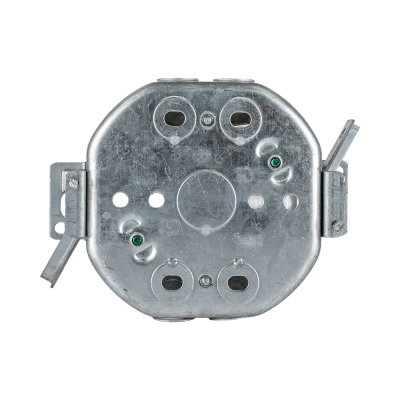

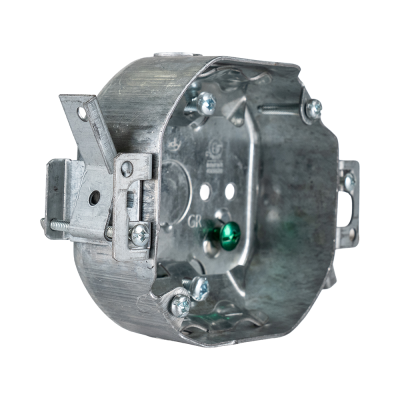

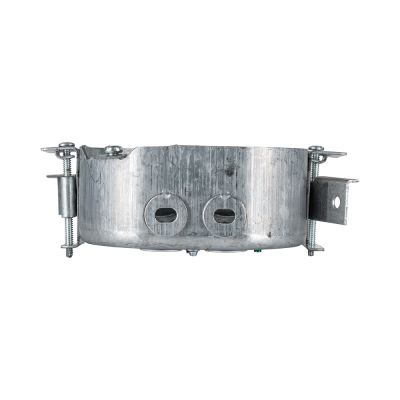

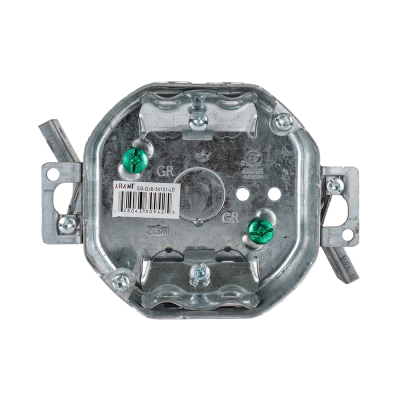

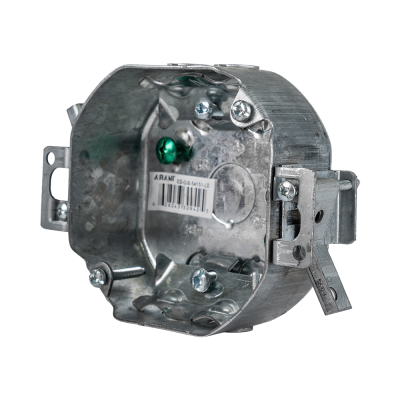

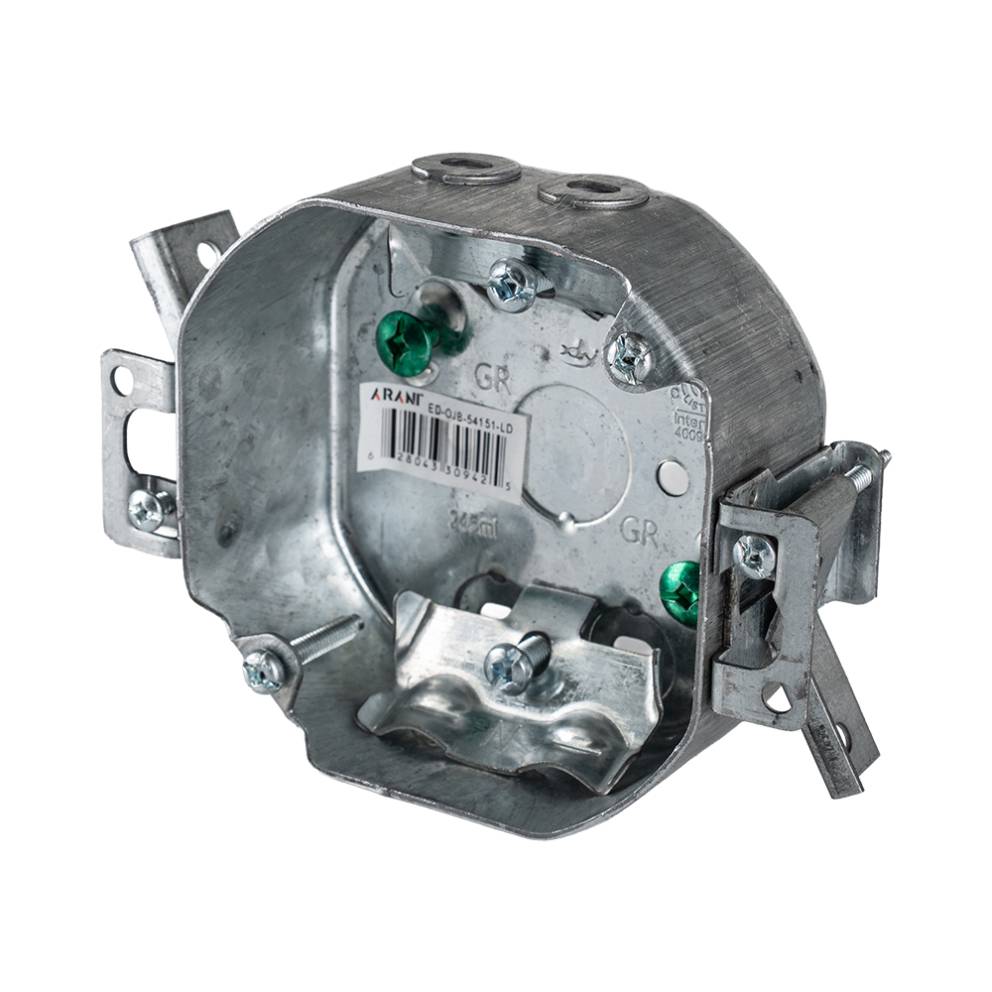

54151-LD - 1 1/2" DEEP CEILING BOX W/SWING-ARM BRACKETS
SKU: ED-OJB-54151-LD
Deep ceiling electrical/junction box 54151-LD is ideal for both residential and commercial applications, steel-made, 1 1/2" deep octagonal box ensures a secure and durable housing for electrical connections.
Key Features:
- Material: Steel
- Dimensions: D ⌀4 in, D 1-1/2 in
- Volume: 15 cu in
- Swing Arm Bracket: allows easily set up of electrical systems, particularly in retrofit situations or when working with limited space.
- Wall Thickness: Accommodates a maximum wall thickness of 3/4 in and supports up to 12lbs.
- Cable Entries: Equipped with 4 Loomex inputs and 1 Knockout EMT.
- Non-metallic Loomex Clamp Type
- Designed for direct wall mounting
- Non-Gangable: Ideal for individual installations.
Related Products
54C1 | Octagon Box Cover 4"
54C6 | Octagon Box Cover 4"
55151-K - 1 1/2" Deep Box Extension w/concentric knockout 50/Box
54151-K | Octagon Junction Box 1 1/2" D
54151-L | Octagon Junction Box 1 1/2" D
54151-LA | Octagon Junction Box 1 1/2" D
1 1/2" Deep Octagon Box (with Side Mount Bracket & Clamps)
54151-KSSX | Wraparound Junction Box 1 1/2" D
54151-LSSAX | Wraparound Junction Box 1 1/2" D
Ordering Info
Series: Octagonal Metal Boxes Octagonal Metal Boxes
Size: 4" 4"
Gangable: No No
Warranty: 1 Year(s) 1 Year(s)
Certifications: cETL cETL
Ordering Code: ED-OJB-54151-LD ED-OJB-54151-LD
Performance Data
Suitable Conditions: Dry Dry
Voltage Classification: Regular (120V) Regular (120V)
Physical Data
Body material: Galvanized Steel Galvanized Steel
Metal Thickness: 0.047 in 1.2 mm
Depth: 1 1/2 in 3.81 cm
Diameter: 4 in 10.16 cm
Clamp type: Non Metallic Sheated Clamp (NMD90) Non Metallic Sheated Clamp (NMD90)
Mounting Ears: No No
Raised ground screw: No No
Knockout sizes: 1/2 in 1.27 cm
Stud Mounting Type: Wood Stud Wood Stud
Number of knockouts/Inlets: 1 1
Volume: 15 cu. in. 246 ml
