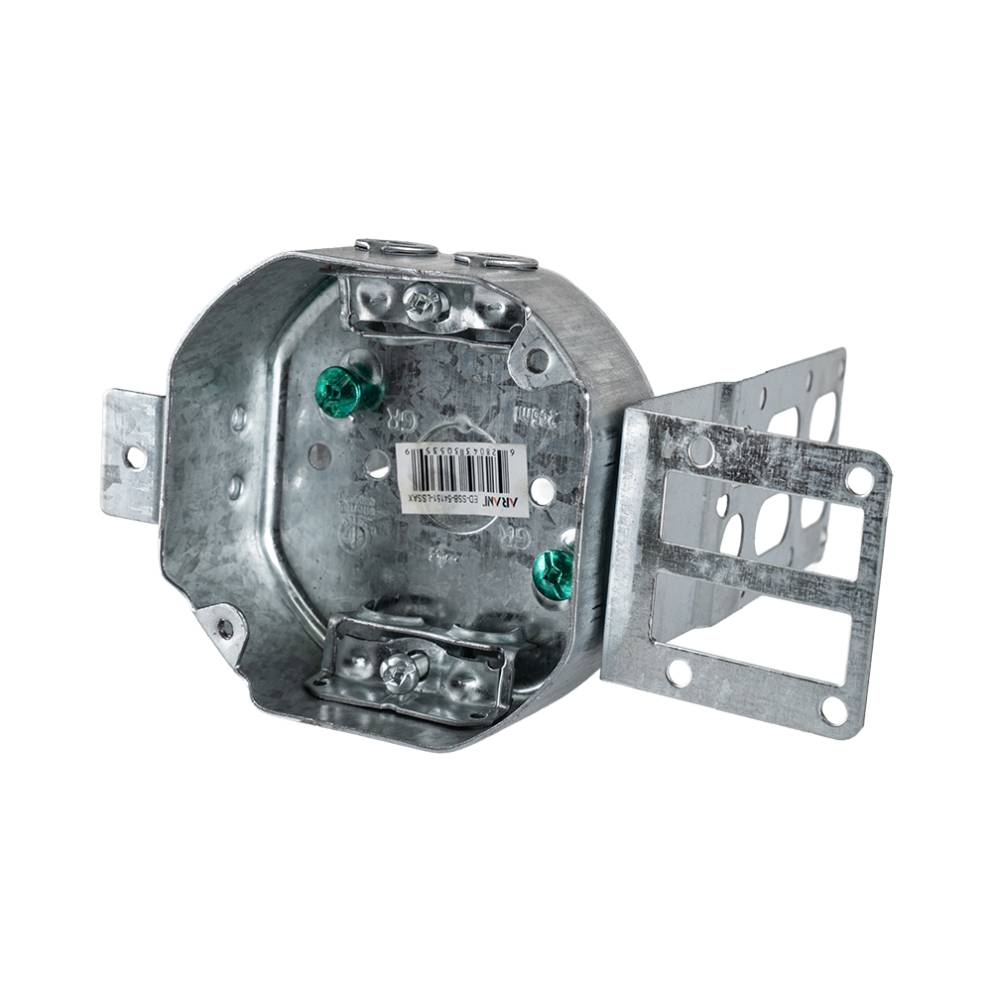

Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, three-quarter view: open interior with bracket folded out

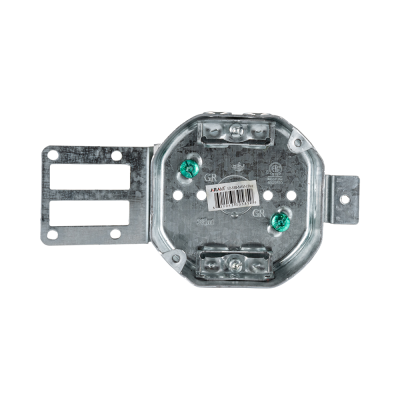

Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, front view with grounding screws and cable clamps

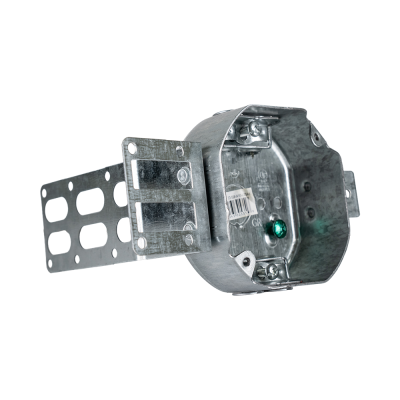

Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, three-quarter view with stud bracket plate in the foreground
Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, three-quarter view with bracket wings on both sides

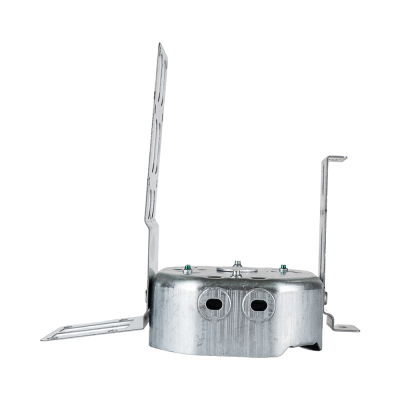

Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, side view with side-wall knockouts and folded brackets

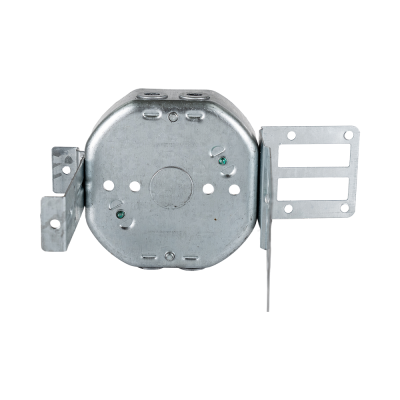

Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, rear view with large centre knockout on the back

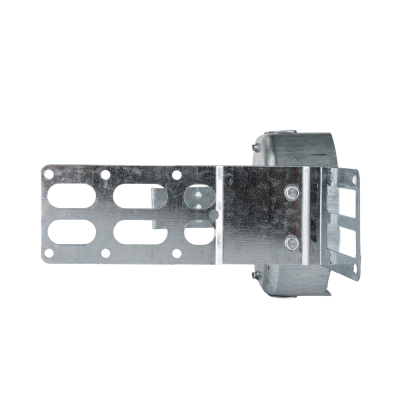

Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, bracket detail: flat stud-mount plate with device openings
Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, three-quarter view: open interior with bracket folded out
Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, front view with grounding screws and cable clamps
Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, three-quarter view with stud bracket plate in the foreground
Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, three-quarter view with bracket wings on both sides
Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, side view with side-wall knockouts and folded brackets
Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, rear view with large centre knockout on the back
Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, bracket detail: flat stud-mount plate with device openings

54151-LSSAX | WRAPAROUND JUNCTION BOX 1 1/2" D

SKU: ED-SSB-54151-LSSAX

Electrical Testing Laboratories logo

Arani Branded, built for Canadian electricians and contractors. Discover the excellence of our metal electrical boxes, crafted from durable 1.2mm galvanized metal. Upgrade your electrical systems with our superior-quality junction boxes, designed to outperform previous models. Don't miss out on our unbeatable prices - seize the opportunity to revolutionize your installations today!

Related Products
54C1 - 4" Round Cover - Blank Image
ED-RBC-54C1

54C1 | Octagon Box Cover 4"

54C6 - 4" Round Cover with 1/2" Centre Knockout Image
ED-RBC-54C6

54C6 | Octagon Box Cover 4"

Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, three-quarter view with green grounding screw in the floor
ED-OJB-54151-K

54151-K | Octagon Junction Box 1 1/2" D

Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, three-quarter view with cable clamp in the box floor
ED-OJB-54151-L

54151-L | Octagon Junction Box 1 1/2" D

Arani 54151-LA octagon junction box, 1-1/2 in deep, AC90, three-quarter view with armoured cable clamps in the floor
ED-OJB-54151-LA

54151-LA | Octagon Junction Box 1 1/2" D

Arani 54151-LB octagon box, 1-1/2 in deep, side mount bracket, three-quarter view with side mount bracket folded out
ED-OJB-54151-LB

1 1/2" Deep Octagon Box (with Side Mount Bracket & Clamps)

Arani 54151-LD octagon ceiling box, 1-1/2 in deep, swing-arm brackets, three-quarter view with two swing-arm brackets folded out
ED-OJB-54151-LD

54151-LD - 1 1/2" Deep Ceiling Box w/Swing-Arm Brackets

Arani 54151-KSSX octagon steel stud box, 1-1/2 in deep, knockouts, three-quarter view with octagonal interior
ED-SSB-54151-KSSX

54151-KSSX | Wraparound Junction Box 1 1/2" D

Specs sheet

Download the specifications sheet.

Ordering Info

Series: Octagonal Metal Boxes Octagonal Metal Boxes

Size: 4" 4"

Gangable: No No

Warranty: 1 Year(s) 1 Year(s)

Certifications: cETL cETL

Ordering Code: ED-SSB-54151-LSSAX ED-SSB-54151-LSSAX

Performance Data

Voltage Classification: Regular (120V) Regular (120V)

Physical Data

Body material: Galvanized Steel Galvanized Steel

Weight: 9.3 oz 262.6 g

Metal Thickness: 0.047 in 1.2 mm

Depth: 1 1/2 in 3.81 cm

Diameter: 4 in 10.16 cm

Clamp type: Armoured cable clamps (AC90) Armoured cable clamps (AC90)

Mounting Ears: No No

Raised ground screw: No No

Knockout sizes: 1/2 in 1.27 cm

Stud Mounting Type: Steel Stud Steel Stud

Number of knockouts/Inlets: 1 1

Volume: 15 cu. in. 246 ml

Weight: 0.581 lb(s) 0.263 kg(s)
