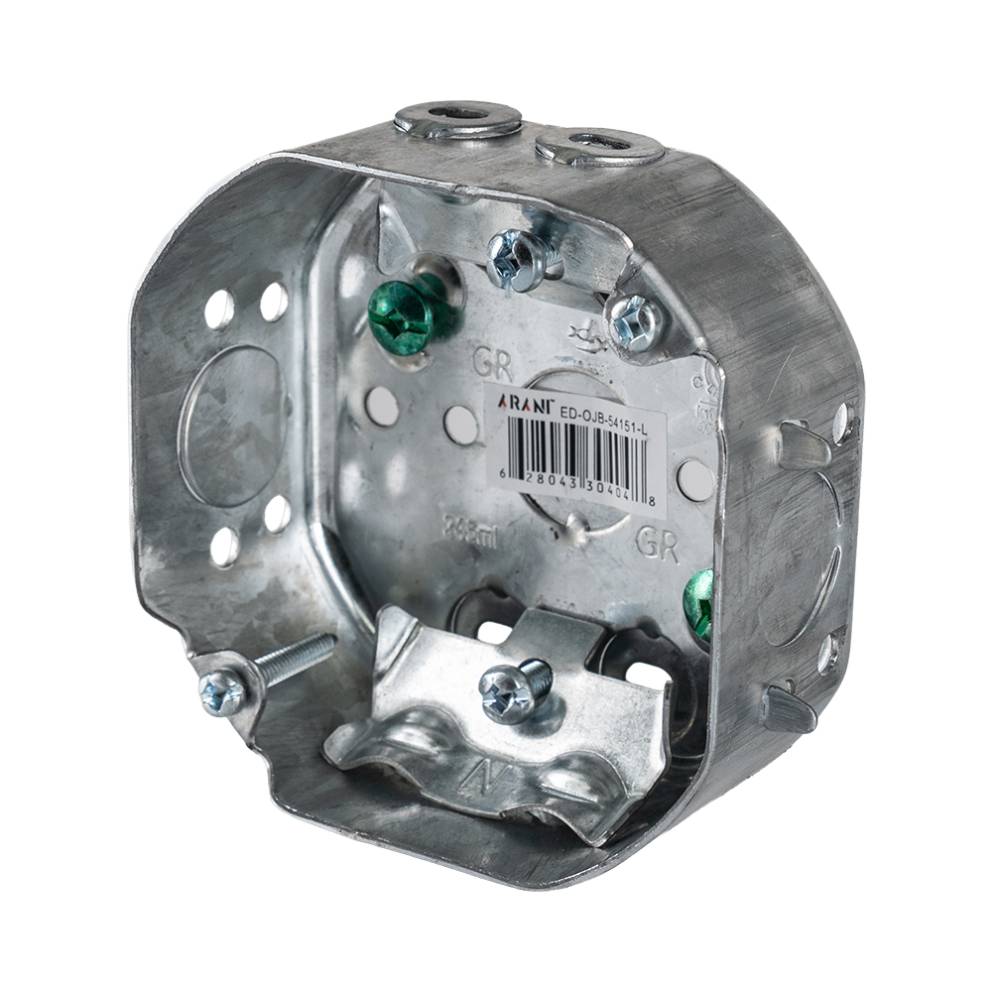

Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, three-quarter view with cable clamp in the box floor

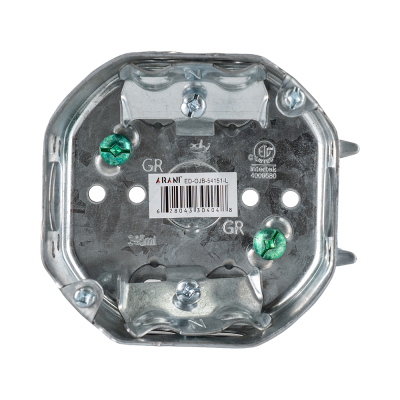

Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, front view with two cable clamps and grounding screws

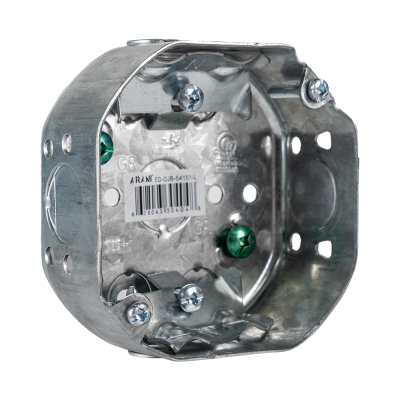

Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, three-quarter view with cable clamps top and bottom

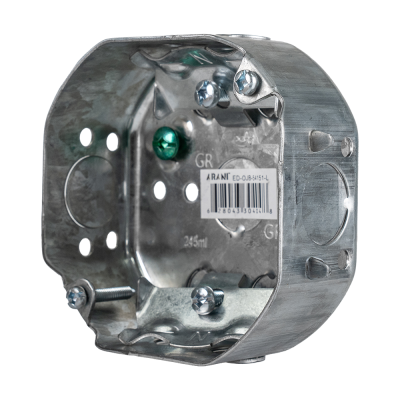

Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, three-quarter view with grounding screw and cable clamps

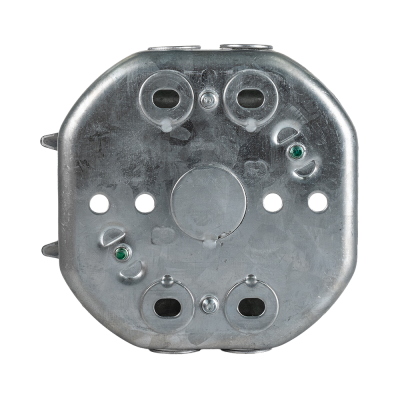

Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, rear view with four punched cable entry holes

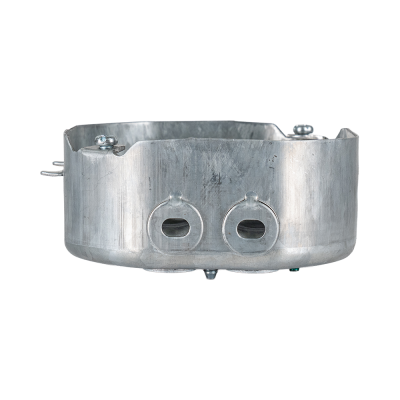

Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, side view with two open side knockout holes
Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, three-quarter view with cable clamp in the box floor
Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, front view with two cable clamps and grounding screws
Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, three-quarter view with cable clamps top and bottom
Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, three-quarter view with grounding screw and cable clamps
Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, rear view with four punched cable entry holes
Arani 54151-L octagon junction box, 1-1/2 in deep, NMD90, side view with two open side knockout holes

54151-L | OCTAGON JUNCTION BOX 1 1/2" D

SKU: ED-OJB-54151-L

Electrical Testing Laboratories logo

Arani Branded, built for Canadian electricians and contractors. Discover the excellence of our metal electrical boxes, crafted from durable 1.2mm galvanized metal. Upgrade your electrical systems with our superior-quality junction boxes, designed to outperform previous models. Don't miss out on our unbeatable prices - seize the opportunity to revolutionize your installations today!

Related Products
54C1 - 4" Round Cover - Blank Image
ED-RBC-54C1

54C1 | Octagon Box Cover 4"

54C6 - 4" Round Cover with 1/2" Centre Knockout Image
ED-RBC-54C6

54C6 | Octagon Box Cover 4"

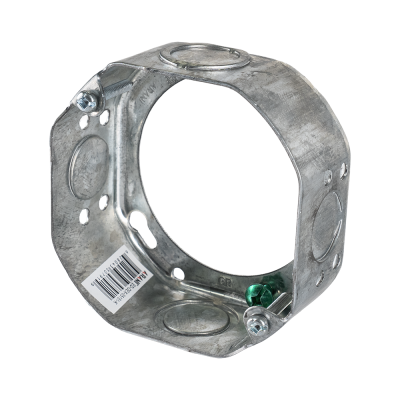

Arani ED-OEX-55151-K 4 in. octagon box extension ring, 1-1/2 in. deep, shown at an angle with concentric knockouts and green gro
ED-OEX-55151-K

55151-K - 4" Box Extension Ring with 1 1/2" depth and concentric knockout. 50/Box

Arani 54151-K octagon junction box, 1-1/2 in deep, knockouts, three-quarter view with green grounding screw in the floor
ED-OJB-54151-K

54151-K | Octagon Junction Box 1 1/2" D

Arani 54151-LA octagon junction box, 1-1/2 in deep, AC90, three-quarter view with armoured cable clamps in the floor
ED-OJB-54151-LA

54151-LA | Octagon Junction Box 1 1/2" D

Arani 54151-LB octagon box, 1-1/2 in deep, side mount bracket, three-quarter view with side mount bracket folded out
ED-OJB-54151-LB

1 1/2" Deep Octagon Box (with Side Mount Bracket & Clamps)

Arani 54151-LD octagon ceiling box, 1-1/2 in deep, swing-arm brackets, three-quarter view with two swing-arm brackets folded out
ED-OJB-54151-LD

54151-LD - 1 1/2" Deep Ceiling Box w/Swing-Arm Brackets

Arani 54151-KSSX octagon steel stud box, 1-1/2 in deep, knockouts, three-quarter view with octagonal interior
ED-SSB-54151-KSSX

54151-KSSX | Wraparound Junction Box 1 1/2" D

Arani 54151-LSSAX octagon steel stud box, 1-1/2 in deep, AC90, three-quarter view: open interior with bracket folded out
ED-SSB-54151-LSSAX

54151-LSSAX | Wraparound Junction Box 1 1/2" D

Specs sheet

Download the specifications sheet.

Ordering Info

Series: Octagonal Metal Boxes Octagonal Metal Boxes

Size: 4" 4"

Gangable: No No

Warranty: 1 Year(s) 1 Year(s)

Certifications: cETL cETL

Ordering Code: ED-OJB-54151-L ED-OJB-54151-L

Performance Data

Voltage Classification: Regular (120V) Regular (120V)

Physical Data

Body material: Galvanized Steel Galvanized Steel

Weight: 6.6 oz 187 g

Metal Thickness: 0.047 in 1.2 mm

Depth: 1 1/2 in 3.81 cm

Diameter: 4 in 10.16 cm

Clamp type: Non Metallic Sheated Clamp (NMD90) Non Metallic Sheated Clamp (NMD90)

Mounting Ears: No No

Raised ground screw: No No

Knockout sizes: 1/2 in 1.27 cm

Stud Mounting Type: Wood Stud Wood Stud

Number of knockouts/Inlets: 3 3

Volume: 15 cu. in. 246 ml

Weight: 0.412 lb(s) 0.187 kg(s)
