TWIST WIRE CONNECTOR | 18-8 GAUGE | 100 PACK | GREY
SKU: TC-18-8-GR-V2

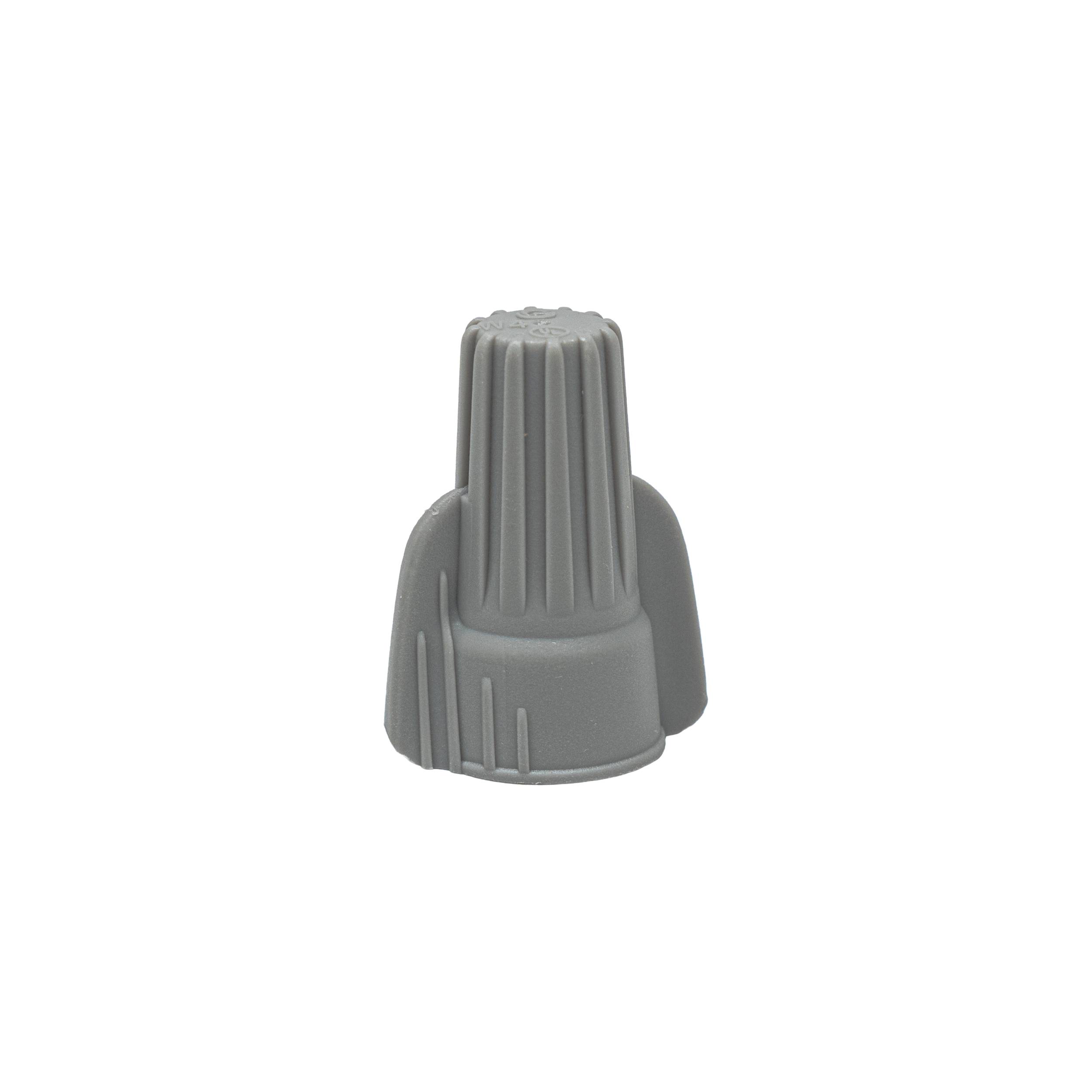

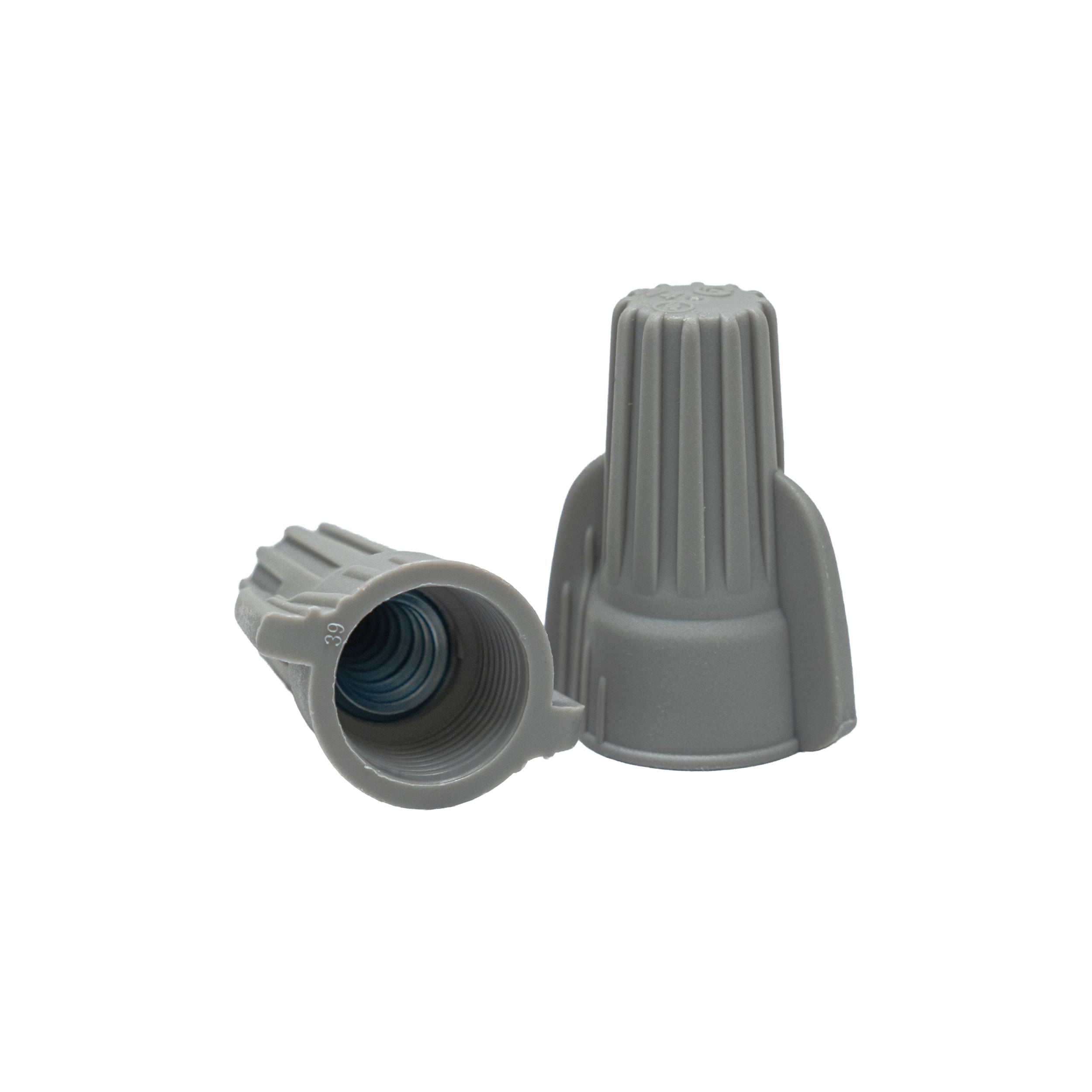

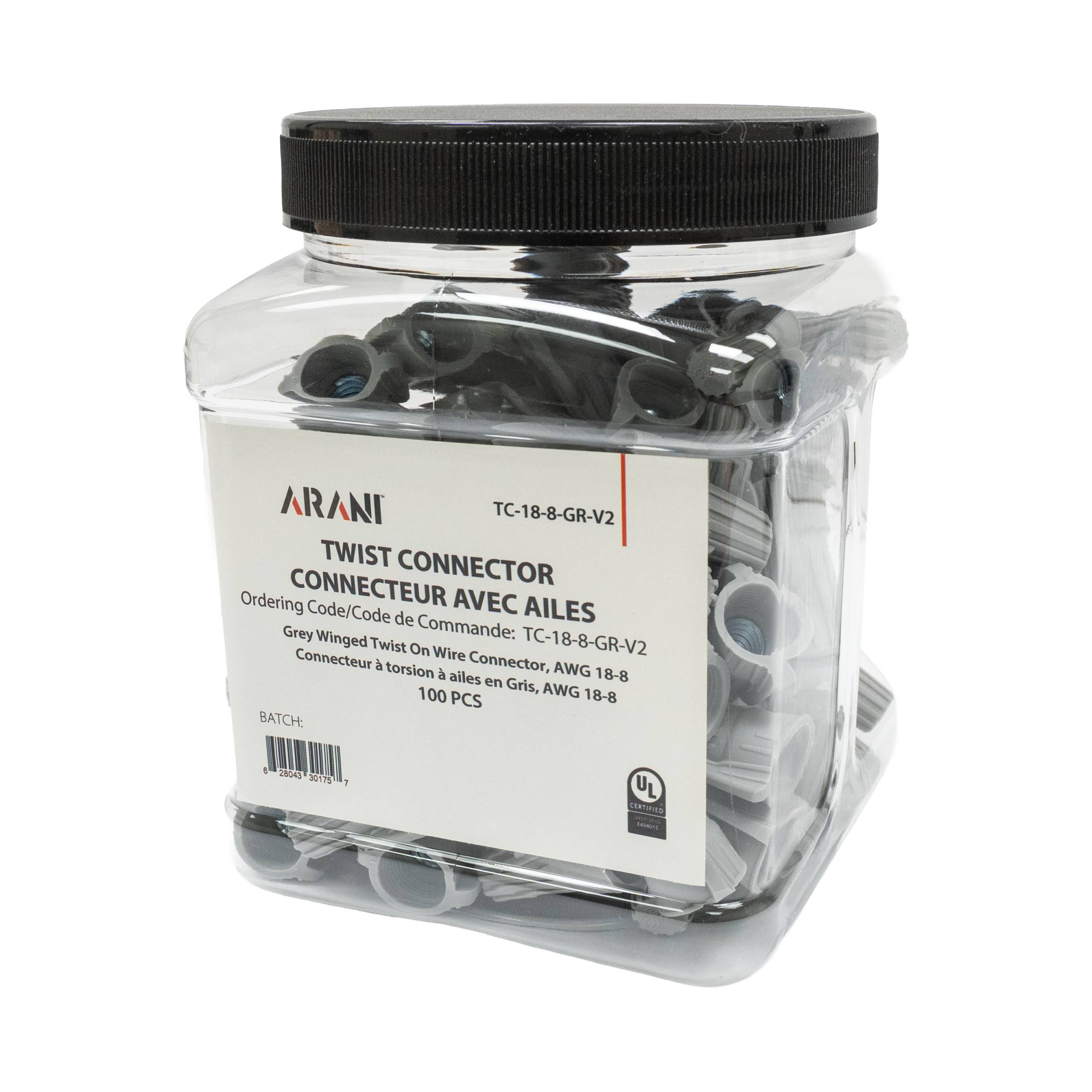

The TC-18-8-GR-V2 is a grey twist connector for joining copper conductors from 18 to 8 AWG. It includes a galvanized carbon steel spring and a large, grooved double-winged shell for better grip and faster installs. Wires can be inserted without pre-twisting. Made of durable polypropylene, this connector is rated for up to 600V in dry locations. Pre-packed in jars of 100 units, and cULus approved for residential and commercial use.
Related Products
Twist Wire Connector | 6-10 gauge | 100 pack | Blue
Twist Wire Connector | 8-22 gauge | 300 pack | Beige
Ordering Info
Series: 8-18 Gauge 8-18 Gauge
Product Colour: Grey Grey
Box Quantity: 100 per box 100 per box
Certifications: cULus cULus
Ordering Code: TC-18-8-GR-V2 TC-18-8-GR-V2
Performance Data
Suitable Conditions: Dry Dry
Voltage Classification: 600V 600V
Maximum Operating Temperature: 221 °F 105 ℃
Minimum Operating Temperature: -4 °F -20 ℃
Physical Data
Body material: Galvanized Carbon Steel Spring | Polypropylene Galvanized Carbon Steel Spring | Polypropylene
Height: 1 5/16 in 3.26 cm
Inner Diameter: 9/16 in 1.44 cm
